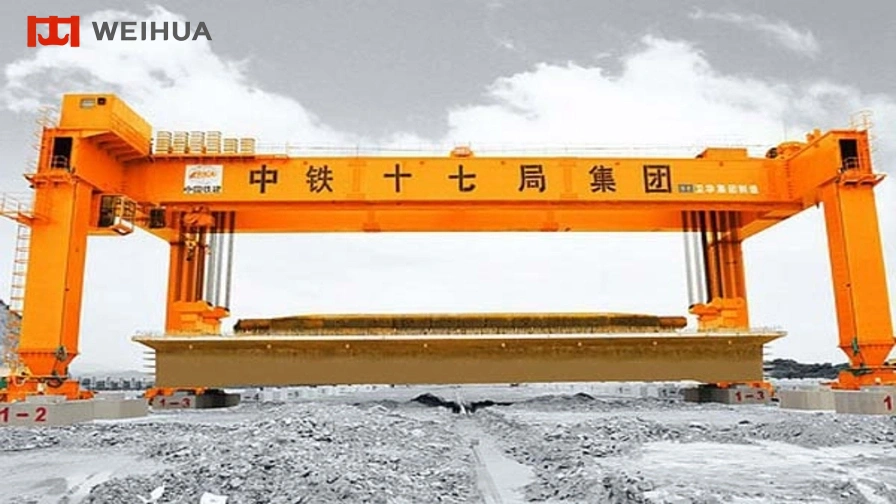

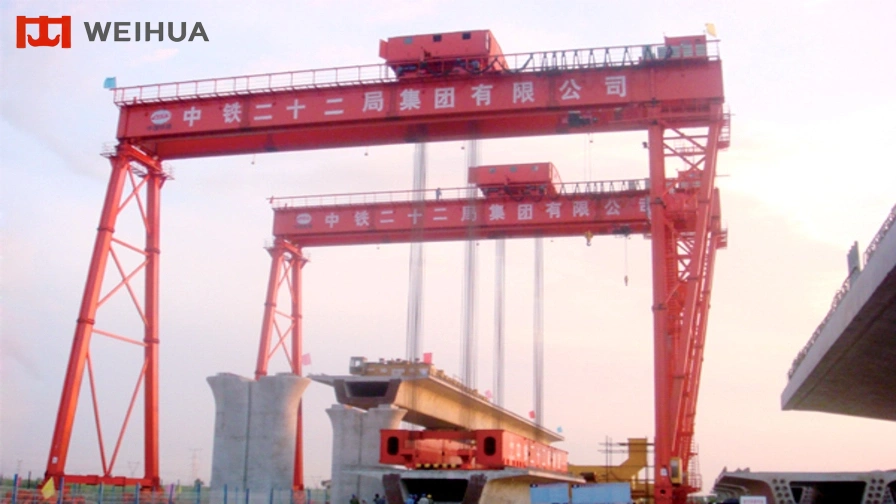

The gantry crane for railway construction is specially designed for the concrete span beam/bridge moving and transport for railway construction. Users can use 2 cranes 500t (450t) or 1 crane 1000t (900t) with 2 lifting points to handle railway beam.

Structure and Components

This railway construction gantry crane consists of main girder, rigid and flexible supporting leg, travelling mechanism, lifting mechanism, electric control system, hydraulic system, driver cabin, railing, ladder and walking plat.

Features of Gantry Crane for Railway Construction

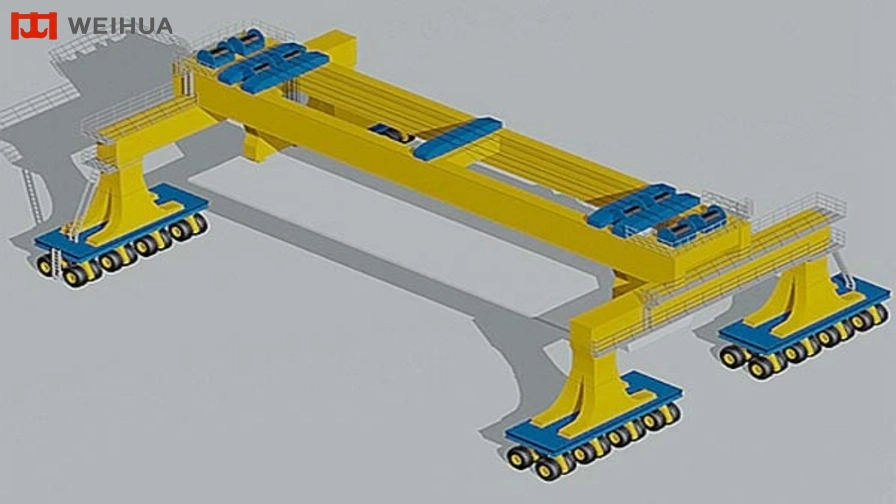

• Rubber tire type and rail-mounted type;

• Hydraulic driven of walking, steering and lifting;

• Walk straight, oblique and rampage;

• Good adaptability, high working efficiency, small space occupied;

• Special spreader mainly used for lifting and transporting large concrete beam/bridge;

• two cranes, 2 trolleys with max lifting height 30m;

• The max wheel load is 22t when lifting 900t stuff;

• 90° shift for rail type crane to achieve horizontal or vertical walking;

• 4 points for lifting and 3 points for balance to ensure even stress of the steel wire rope;

• Accurate positioning for stuff lifting down;

• Hydraulic push for trolley to realize various lifting and save the cost;

• For the 4 hoists, it can be single use or combine use of 2 or 4 hoists while the hardware and software are interlocked for operation safety.

Customized Gantry Crane for Railway Construction Solutions

Weihua Crane provides fully customized Gantry Crane for Railway Construction solutions designed for railway construction sites and track engineering yards, offering high lifting capacity, precise handling, and reliable performance for railway components and construction materials management.

Key parameters such as lifting capacity, span, lifting height, and rail gauge can be flexibly adjusted to suit different site layouts and railway construction handling requirements, ensuring efficient and safe operations.

Optional Configurations

• Electric or hybrid drive trolley options

• Automated control and remote operation system

• Anti-sway and positioning system for precise railway construction handling

• Energy-saving drive systems and regenerative braking

• Customized design to match specific construction yard rail layouts

Our engineering team ensures high efficiency, safety, and long-term reliability, providing advanced solutions for modern railway construction yards and track engineering operations.
