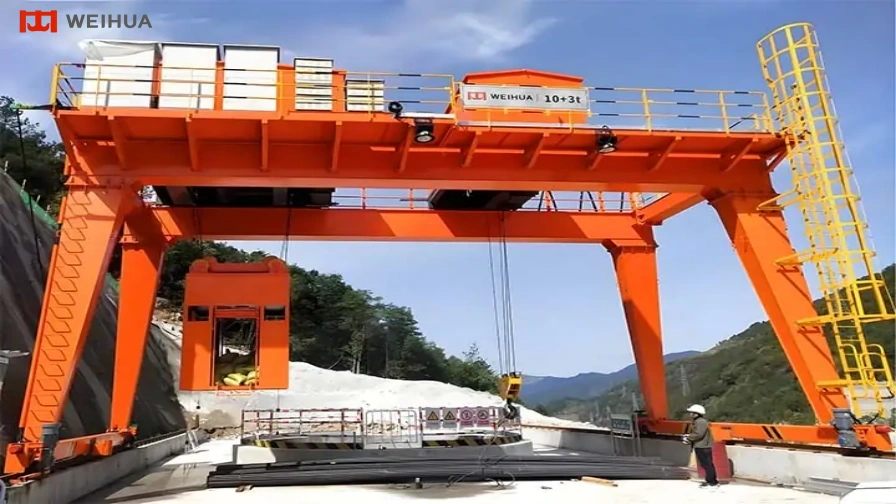

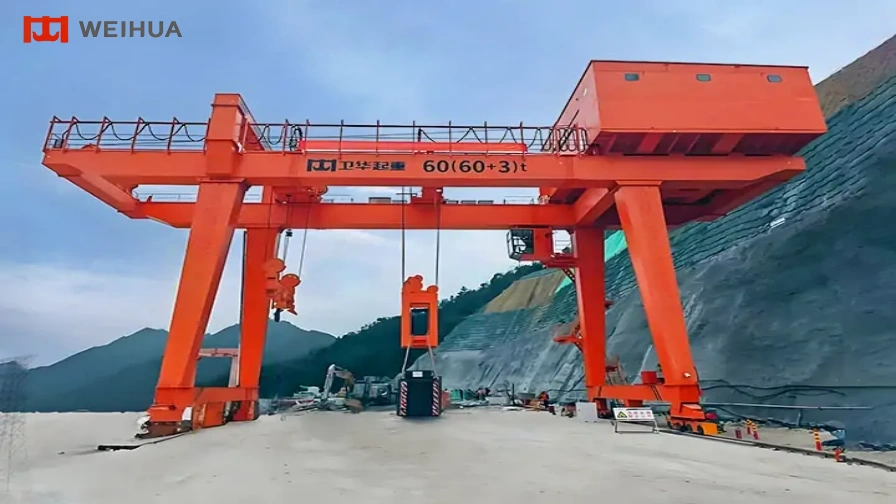

Mining vertical shaft gantry crane is a kind of high safety, high reliability, multi-functional and high efficiency lifting equipment designed and developed on the basis of double girder gantry crane and combined with the actual working conditions and characteristics of the shaft. The equipment has a high level of intelligence and automation, applicable to a variety of complex working conditions, can be installed both outdoors and inside the cave.
According to the actual demand, its structure form can adopt portal, bridge or fixed bracket structure, and can be equipped with independent man-carrying and load-carrying systems. Each system and mechanism can work independently or cooperatively within the diameter of the shaft to meet diversified construction needs.
Features
Frequency conversion control: each mechanism adopts frequency conversion control technology, supports operation indoor, operation platform or remote control operation, and is equipped with wireless communication function, adapting to deep well operation environment.
Smooth running and accurate positioning: runs smoothly with high positioning accuracy, supports micro-movement, inching and anti-rocking functions, and can realize synchronous operation of multi-agency and multi-lifting points.
Ultra-high winch technology: completely solve the problem of ultra-high winch wire rope disturbing and hoist rotation, with rope breakage protection and fall protection to ensure operational safety.
Redundant design: The man-carrying mechanism adopts redundant design and is equipped with misoperation protection and automatic return-to-zero protection, reflecting the concept of humanized design.
Intelligent management: It supports animation simulation, working load status display, record and save function, which is convenient for operation monitoring and data analysis.
Applications
Mining vertical shaft gantry cranes are widely used in cable shafts of hydropower stations, high-voltage shafts, outlet shafts, exhaust shafts and other types of shafts, excavation, support stage equipment lifting, transportation of materials, later installation of equipment and staff conveyance and other operations.
Personnel transportation: vertical transportation of construction personnel in the shaft.
Hydroelectric power station project: excavation, support, equipment lifting and material transportation of various types of shafts such as cable shafts, high-voltage shafts, outlet shafts, exhaust shafts and so on.
Equipment installation and overhaul: lifting, installation and overhauling of equipment such as small excavators, drilling rigs, spray protection equipment, slipforms, BOX pipes, pressure steel pipes and so on.
Material Transportation: Vertical transportation of materials such as steel bars and barrels.
Technical Specification
Customizable technical parameters are available according to your shaft size, lifting capacity, lifting height and working environment requirements.
Brand Reputation
Weihua Cranes ranks among the top sellers in China's crane industry, boasting high brand awareness and market share. Its products are widely used in numerous national key projects.
Full Service
Weihua provides a one-stop service, encompassing consultation and planning, solution design, installation, and localized technical support worldwide.
Excellent Product Quality
Weihua Crane employs automated production lines and precision machining equipment. Key components are sourced from well-known domestic and international brands.
High Safety
Weihua Lifting strictly adheres to international standards such as GB and FEM. Key structures adopt high safety factors to ensure precise operation.
Customized Mining Vertical Shaft Gantry Crane Solutions
Weihua Crane provides fully customized Mining Vertical Shaft Gantry Crane solutions designed for mine construction, vertical shaft excavation and underground mining engineering operations, offering high lifting capacity, precise handling, and reliable performance for mining equipment, shaft materials and heavy component management.
Key parameters such as lifting capacity, span, lifting height, and rail gauge can be flexibly adjusted to suit different mine site layouts and vertical shaft construction handling requirements, ensuring efficient and safe operations in harsh mining working environments.
Optional Configurations
Electric or hybrid drive trolley options
Automated control and remote operation system
Anti-sway and positioning system for precise mining material and equipment handling
Energy-saving drive systems and regenerative braking
Customized design to match specific mine field and vertical shaft construction rail layouts
Our engineering team ensures high efficiency, safety, and long-term reliability, providing advanced solutions for modern mine construction, vertical shaft development and mining engineering operations.
| No. | Project | Unit | Design value | Remarks | |
|---|---|---|---|---|---|
| 1 | Rated lifting capacity | t | 60 | ||
| 2 | Span/Effective cantilever length (left)/ Effective cantilever length (right) | m | 18/—/4.5 | ||
| 3 | Lifting height / Lowering depth | m | 10/— | 650m rope capacity | |
| 4 | Overall power | kW | 398.4 | ||
| 5 | Design weight | t | 230.37 | ||
| 6 | Working class of the whole machine | — | A5 | ||
| 7 | Lifting mechanism (main trolley) | Rated lifting capacity | t | 60 | — |
| 8 | Speed | m/min | 1.5~15 | — | |
| 9 | Multiplier | — | 4/2 | — | |
| 10 | Working class | — | M5 | — | |
| 11 | Spreader type | — | Specialized slag discharge hook beam Spreader | ||
| 12 | Lifting mechanism (sub-trolley) | Rated lifting capacity | t | 3 (without cage) | — |
| 13 | Speed | m/min | 3~30 | — | |
| 14 | Multiplier | — | 8/4 | — | |
| 15 | Working class | — | M6 | — | |
| 16 | Spreader type | — | Specialized cargo cages | — | |
| 17 | Large Vehicle Operation Mechanism | Speed | m/min | 2~20 | |
| 18 | Work Class | — | M5 | ||
| 19 | Wagon Rail | — | QU120 | ||
| 20 | Trolley Operation Mechanism | Speed | m/min | 2~20 | 0~20 |
| 21 | Working level | — | M5 | M5 | |
| 22 | Trolley track | mm | Square steel(80×60) | Square steel(80×60) | |
-
