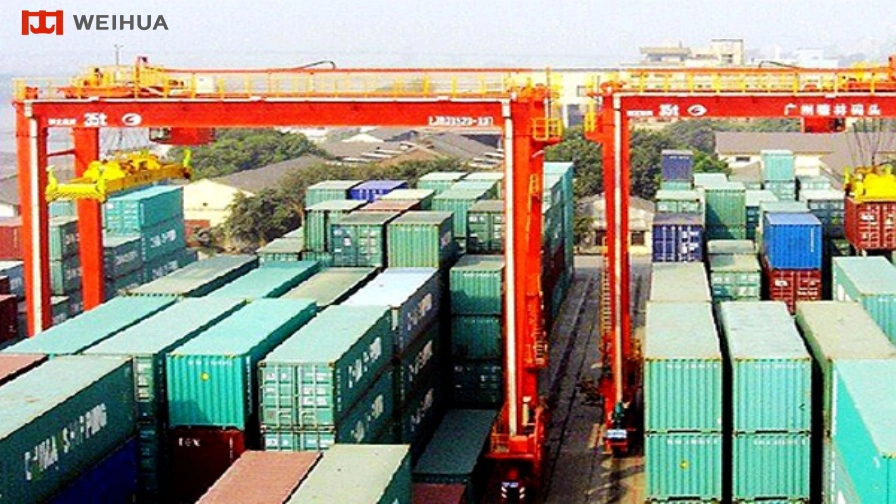

The Weihua Rail Mounted Gantry Crane (RMG) is designed for container handling in inland terminals, container yards, rail freight stations, coastal freight yards, and frontier wharfs. It integrates advanced technologies such as full digital AC frequency conversion, PLC control, and intelligent monitoring (CMS), ensuring high efficiency, precision, and safety in material handling operations.
Key Features of Weihua Rail Mounted Gantry Crane
U-type frame with double cantilever and rod: strong and lightweight.
Large gantry span and width for container loading and unloading.
360° rotating spreader providing excellent adaptability and efficiency.
Long traveling mechanism assembly for stable movement.
Comprehensive frame/gantry assembly and trolley assembly.
Full digital frequency conversion and PLC control technology.
High precision sensor data acquisition and industrial computer analysis system.
Electrical control system integrated with CMS for intelligent monitoring.

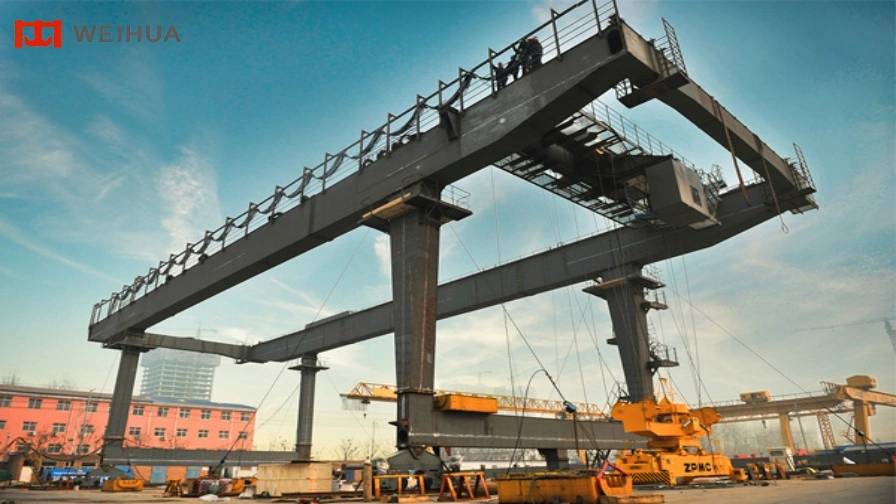

Structure and Components
The RMG crane mainly consists of steel structure, lifting mechanism, micro-transfer mechanism, spreader anti-sway system, crane travelling mechanism, container spreaders, electrical equipment, and other auxiliary equipment. It adopts frequency conversion, PLC control system, and CMMS fault detection system, complying with standards including GB/T19683-2005, JT/T566-2004, ISO, FEM, and JIS.
Applications
Container stacking and transport in inland terminals and container yards.
Rail freight stations and coastal freight yards handling standard containers.
Flexible lifting of 20ft, 40ft, and 45ft containers using dedicated spreaders.
Efficient operations in petrochemical, logistics, and industrial material handling.
Types & Mechanisms
Double Cantilever Gantry Crane: Large space between outriggers for containers to pass through, forming a U-shape combined with girder forming N-shape.
Non-Cantilever Crane: Simple structure where containers do not pass between outriggers.
Stabilization: Rope-type mechanisms can use dampers; rigid type uses inherent rigidity. Optional anti-sway device improves operational stress and efficiency.
Drive & Safety: Three-in-one gear motors for long travel and cross travel, 270° trolley rotation, anti-breaking shaft, wind warning, anti-tipping, and other safety systems.
Brand Reputation
Weihua Cranes ranks among the top sellers in China's crane industry, boasting high brand awareness and market share. Its products are widely used in numerous national key projects.
Full Service
Weihua provides a one-stop service, encompassing consultation and planning, solution design, installation, and localized technical support worldwide.
Excellent Product Quality
Weihua Crane employs automated production lines and precision machining equipment. Key components are sourced from well-known domestic and international brands.
High Safety
Weihua Lifting strictly adheres to international standards such as GB and FEM. Key structures adopt high safety factors to ensure precise operation.

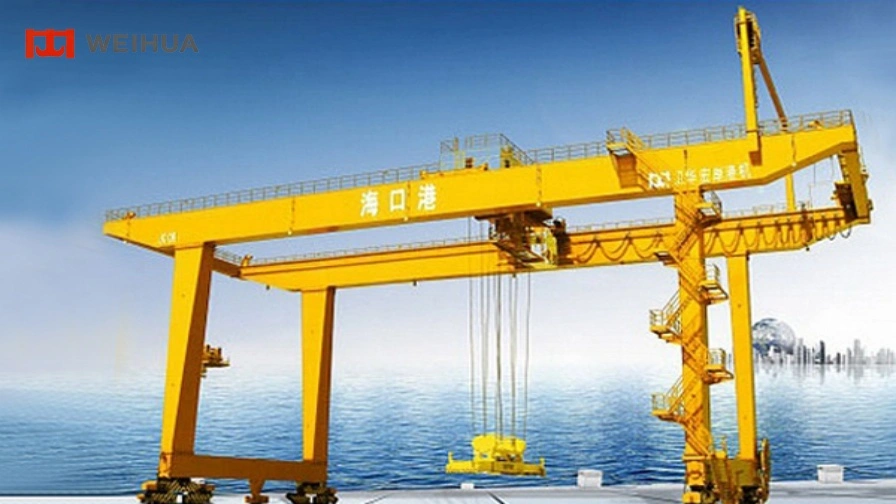

Customized Container Rail Mounted Gantry Crane Solutions
Weihua Crane provides fully customized Container Rail Mounted Gantry Crane solutions designed for port and yard operations, offering high lifting capacity, precise handling, and reliable performance for container management.
Key parameters such as lifting capacity, span, lifting height, and rail gauge can be flexibly adjusted to suit different terminal layouts and container handling requirements, ensuring efficient and safe operations.
Optional Configurations
Electric or hybrid drive trolley options
Automated control and remote operation system
Anti-sway and positioning system for precise container handling
Energy-saving drive systems and regenerative braking
Customized design to match specific yard rail layouts
Our engineering team ensures high efficiency, safety, and long-term reliability, providing advanced solutions for modern container handling yards and port operations.
| Model | LJ35/40-23 | Light Type LJ40-23 |
| Lifting capacity (without spreader)(t) |
35,40 | 40 |
| Work level | A7,A8 | A6,A7 |
| Span(m) | 23,47 | 23,47 |
| Lifting Height (m) | 12.2~17.8 | 16.5 |
| Stack layer | 3/4~5/6 | 5/6 |
| Container size | 20',40',45' | 20',40',45' |
| Spreader rotation angle | ±5° | ±5° |
| Lifting (m/min) | 13/26,23/52 | 12/18,18/28 |
| Trolley travelling (m/min) | 50,70 | 24 |
| Crane travelling (m/min) | Full load-90, no load-130 |
Full load-20, no load-40 |
| Max. wheel load(kN) | 310 | 310 |
-
