The A-Type Double Beam Gantry Crane is a heavy-duty lifting solution featuring two parallel main beams and an electric trolley capable of moving along the beams for precise horizontal material handling. It offers versatile operation modes including ground control and cabin control, with the cabin available in open or closed configurations, and can be installed on either the left or right side as required.
Product Description
Classified as an MG (A) type, this double beam gantry crane has a rated lifting capacity of 5 to 200 tons. It is suitable for both indoor and outdoor installation. For outdoor deployment, factors such as wind, rain, and typhoon resistance are considered. The crane features an A-shaped bracket design on both sides, providing excellent stability and support.
The crane can be equipped with wheels or a track system, allowing the entire machine to move along the ground or rail as needed. Our factory offers semi-customized solutions, designing lifting height, span, and track overhang according to your site requirements to ensure optimal performance.
Main Applications
Cargo Loading & Unloading at Ports: Efficient handling of containers and large cargoes.
Raw Material Handling in Steel Industry: Transporting iron ore, coal, and other raw materials from yards to production lines.
Material Lifting at Construction Sites: Precise lifting of heavy building materials such as steel bars and prefabricated components.
Railway Vehicle Maintenance: Disassembly and installation of locomotive parts to ensure smooth maintenance operations.
Internal Logistics in Large Manufacturing Plants: Assembly and transportation of large machinery, equipment, and components to improve production efficiency.
Features & Advantages
Heavy-Duty Capacity: Designed for lifting up to 200 tons with stable A-shaped support.
Flexible Operation: Operates with ground control or cabin control (open/closed), adaptable to site conditions.
Customizable Installation: Track system, lifting height, and span tailored to user requirements.
Durable Construction: High-strength steel beams and reinforced brackets for long-term reliability.
Wide Application: Suitable for ports, steel mills, construction sites, workshops, and manufacturing plants.
Brand Reputation
Weihua Cranes ranks among the top sellers in China's crane industry, boasting high brand awareness and market share. Its products are widely used in numerous national key projects.
Full Service
Weihua provides a one-stop service, encompassing consultation and planning, solution design, installation, and localized technical support worldwide.
Excellent Product Quality
Weihua Crane employs automated production lines and precision machining equipment. Key components are sourced from well-known domestic and international brands.
High Safety
Weihua Lifting strictly adheres to international standards such as GB and FEM. Key structures adopt high safety factors to ensure precise operation.
Customized Double Beam Gantry Crane (A Type) Solutions
Weihua Crane provides fully customized Double Beam Gantry Crane (A Type) solutions designed for heavy-duty lifting and outdoor material handling, offering high stability, efficiency, and reliability for industrial and port applications.
Key parameters such as lifting capacity, span, lifting height, and clearance under the gantry can be flexibly customized to meet specific operational requirements, making it ideal for handling containers, steel structures, and oversized loads in yards and industrial sites.
Optional Configurations
Electric hoist trolley or winch trolley options
Cabin control, remote control, or automated operation system
Frequency conversion drive for smooth and precise operation
Wind-resistant design with rail clamping and anchoring devices
Customized design for different outdoor environments and load types
Our engineering team ensures high load capacity, stable operation, and long-term reliability, providing efficient lifting solutions for ports, freight yards, construction sites, and industrial applications.
| Product Name | A-Type Double Girder Gantry Crane |
| Lifting Capacity | 5-200/50 ton |
| Work Duty | A5 |
| Span(m) | 18-35 |
| Lifting Height(m) | 10-14 |
| Crab travelling(m/min) | 3.3-33/3.4-34/3.8-38/3.7-37 |
| Trolley travelling(m/min) | 3-30 |
| Power Source | 3-phase A.C. 50Hz 380V |
| Operational Method | Ground Control+Remote Control |
-

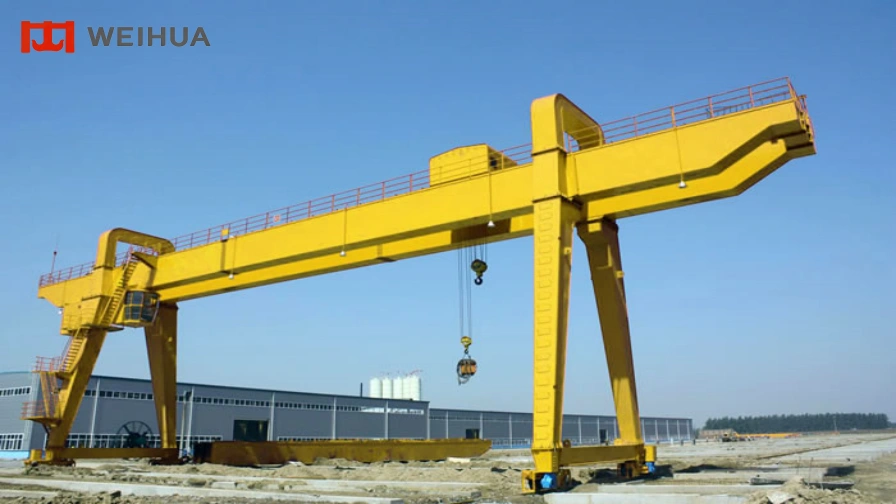

Double Girder Gantry Crane U TypeAt container terminals, U Type Double Girder Gantry Cranes handle container transfer efficiently and flexibly, and can also lift heavy cargo. In industrial sites like steel plants and workshops, they provide reliable heavy-duty lifting solutions. -
