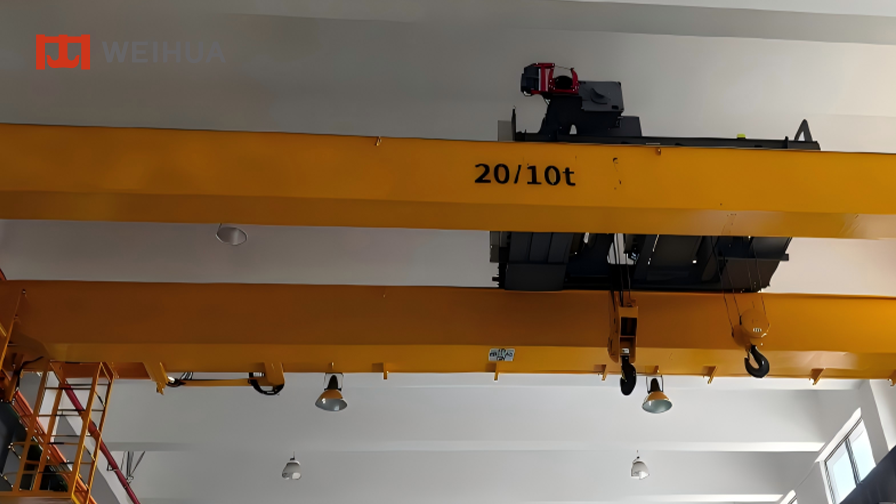

The Euro-type Double Girder Overhead Crane with Electric Hoist is an advanced lifting system designed according to European standards, featuring compact structure, low headroom configuration, and high operational efficiency. It is widely used in modern industrial facilities requiring precise handling, high stability, and optimized space utilization.

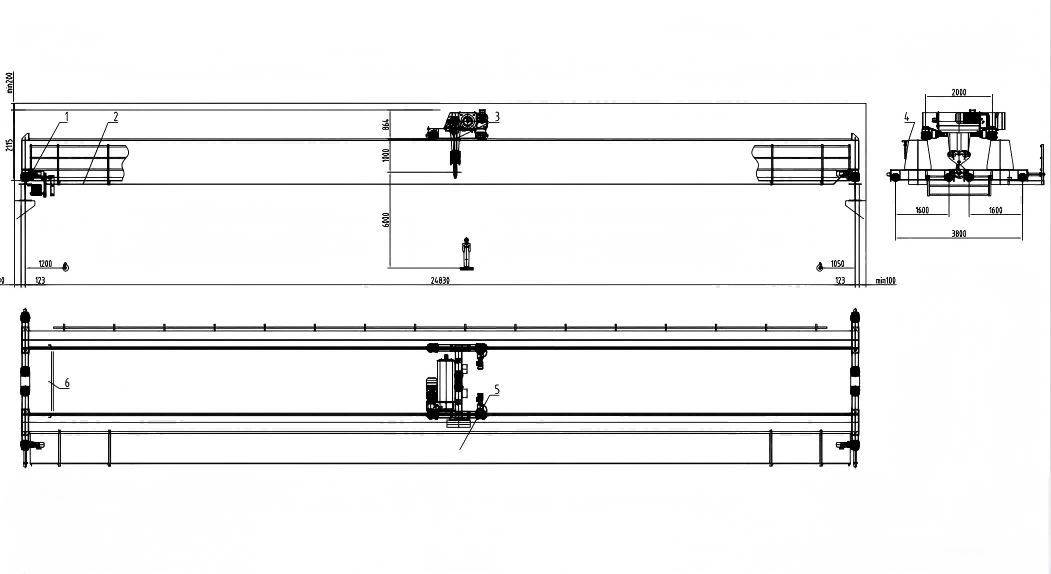

This crane adopts a double girder bridge structure with off-center rail design, allowing maximum use of lifting height and working space. The main beam is manufactured from high-strength steel with excellent weldability, ensuring superior rigidity, durability, and load-bearing performance.
The end carriages are precision-welded and equipped with a stable traveling mechanism driven by a three-in-one geared motor, providing smooth operation, low noise, and high transmission efficiency. The integrated walkway, handrails, and maintenance platforms enhance operational safety and convenience.
The lifting system is equipped with a European ND electric hoist trolley, featuring a compact design, optimized structure, and excellent stability. Its advanced configuration allows efficient use of span space while ensuring precise lifting, smooth movement, and energy efficiency.
5 ton – 50 ton
10.5m-31.5m or other
Low Headroom / Compact Structure
Three-in-One Geared Motor
Key Features
European design with compact and low headroom configuration
High-strength steel structure with excellent rigidity and durability
ND electric hoist trolley for efficient and precise lifting
Three-in-one drive system for smooth and energy-efficient operation
Optimized structure for maximum use of lifting height and span
Low noise operation suitable for modern industrial environments
Application Areas
Machinery manufacturing and assembly workshops
Steel processing and metal fabrication plants
Warehouses and logistics distribution centers
Automotive and precision manufacturing industries
General industrial lifting and material handling operations
Important Notes
Designed for medium to heavy-duty industrial lifting applications
Regular inspection of hoist, rail system, and drive components is recommended
Customization available based on plant layout and operational requirements
Brand Reputation
Weihua Cranes ranks among the top sellers in China's crane industry, boasting high brand awareness and market share. Its products are widely used in numerous national key projects.
Full Service
Weihua provides a one-stop service, encompassing consultation and planning, solution design, installation, and localized technical support worldwide.
Excellent Product Quality
Weihua Crane employs automated production lines and precision machining equipment. Key components are sourced from well-known domestic and international brands.
High Safety
Weihua Lifting strictly adheres to international standards such as GB and FEM. Key structures adopt high safety factors to ensure precise operation.
Customized Euro-Type Double Girder Overhead Crane with Electric Hoist Solutions
Weihua Crane provides fully customized Euro-type double girder overhead crane solutions with electric hoist, designed according to FEM standards for high efficiency, compact structure, and advanced performance.
Key parameters such as lifting capacity, span, lifting height, and duty class can be flexibly customized to meet different industrial requirements, while the low headroom design maximizes workshop space utilization.
Optional Configurations
ND electric hoist with European design
Frequency conversion control for smooth and precise operation
Anti-sway system for accurate load positioning
Intelligent monitoring and fault diagnosis system
Energy-saving and low-noise drive system
Our engineering team ensures high precision, smooth operation, and long service life, making it an ideal lifting solution for modern manufacturing, precision assembly, and high-end industrial applications.
| 起重能力 | t | 5 | 10 | 16 | 20 | 32 | |
| 跨度 | 10.5米~31.5米，可定制 | ||||||
| 升力高度 | m | 6米~24米，可定制 | |||||
| 起重速度 | m/min | 8 8/0.8 | 7 7/0.7 | 3.5 0.35/3.5 | 3.3 0.33/3.3 | 3.3 0.33/3.3 | |
| 有轨电车行驶速度 | m/min | 20 | 20 | 20 | 20 | 20 | |
| 起重机行进速度 | m/min | 30 | 30 | 30 | 30 | 30 | |
| 工作职责 | A4 | ||||||
| 电源 | 380伏，50赫兹 | ||||||
| 欧罗巴标准电动起重机双梁起重机技术规格 | |||||||
| 起重能力 | t | 5 | 10 | 16 | 20 | 32 | 50 |
| 跨度 | 10.5米~31.5米，可定制 | ||||||
| 升力高度 | m | 6米~24米，可定制 | |||||
| 起重速度 | m/min | 0.8/5 | 0.8/5 | 0.66/4 | 0.53/3.4 | 0.8/3.3 | 0.53/3.2 |
| 有轨电车行驶速度 | m/min | 2~20 | 2~20 | 2~20 | 2~20 | 2~20 | 2~20 |
| 起重机行进速度 | m/min | 3~30 | 3~30 | 3~30 | 3~30 | 3~30 | 3~30 |
| 工作职责 | A5 | ||||||
| 电源 | 380伏，50赫兹 | ||||||
-
