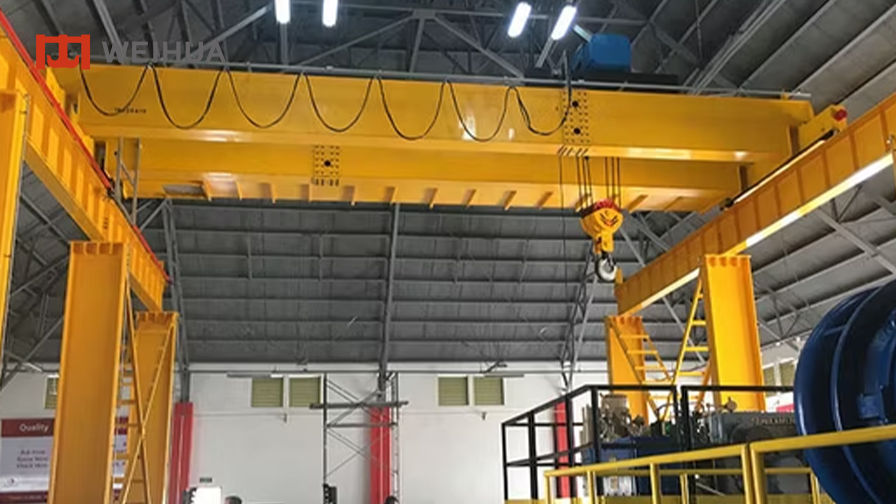

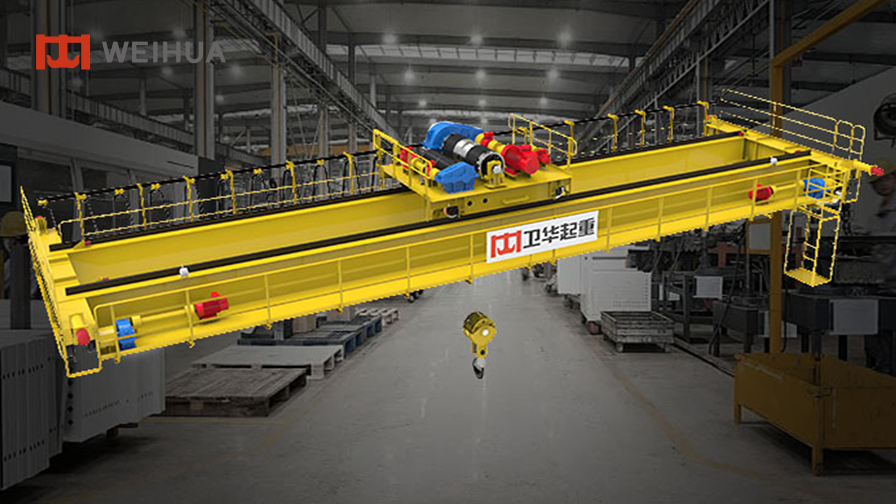

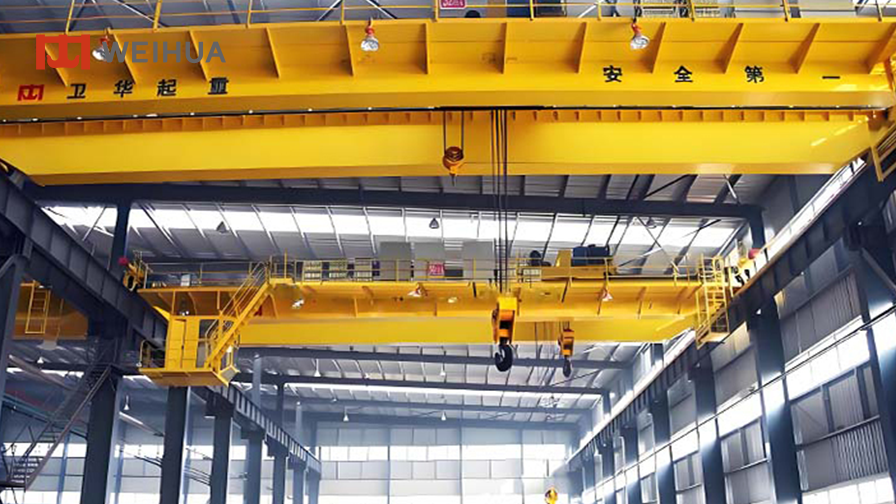

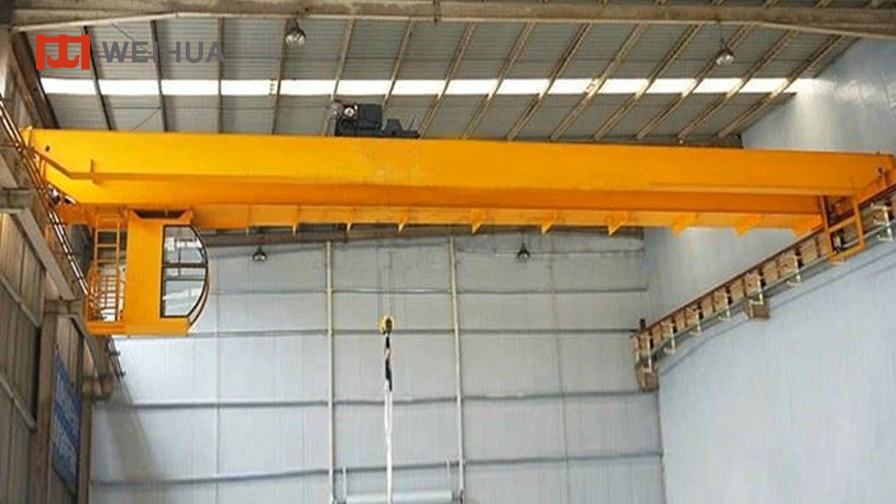

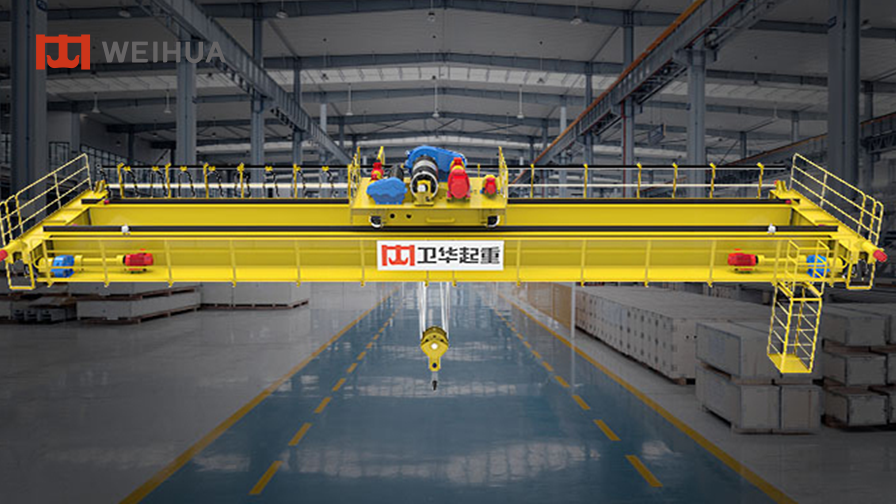

The Double Beam Explosion-Proof Bridge Crane is a special lifting equipment designed for hazardous environments containing flammable, explosive gas or dust. It is widely used in industries requiring strict safety protection and reliable explosion-proof performance.
Standards & Explosion-Proof Rating
All motors and electrical components comply with GB3836.2-2000 (Flameproof Enclosure “d”) standard for explosive gas atmospheres.
The overall crane design complies with JB/T5897-2006 “Explosion-proof Bridge Cranes”.
Explosion-proof ratings: Exd IIB T4 and Exd IIC T4.

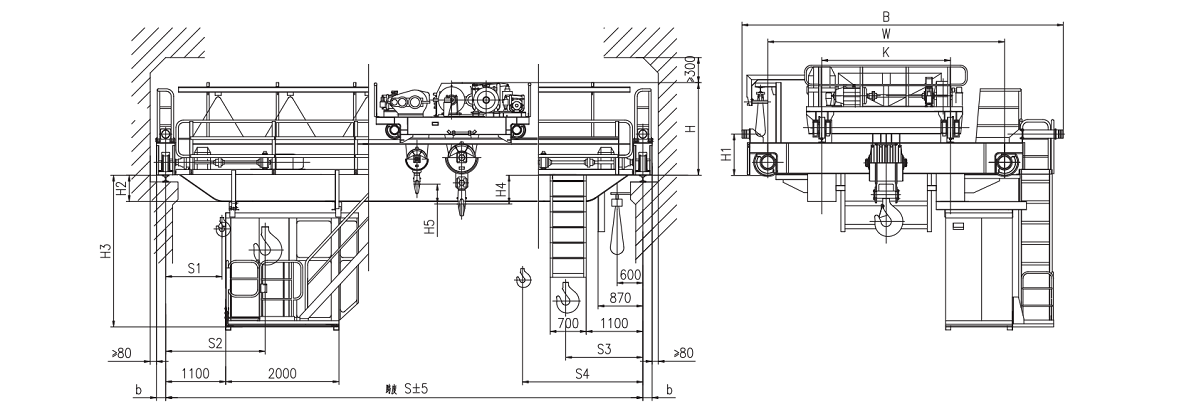

Main Structure
Main Beam: Made of high-strength corrosion-resistant alloy steel or explosion-proof compliant materials. It effectively reduces risks caused by static electricity and sparks. Automatic submerged arc welding ensures high-quality welds and strong structural stability.
Electric Trolley: Uses I-beam track cable conduction system, ensuring safe and reliable power transmission while reducing operational hazards.
Electrical System: Equipped with explosion-proof motors, flameproof electrical components, and explosion-proof limit switches. The sealed structure effectively isolates internal sparks or arcs from external explosive environments.
Applications
Chemical Industry: Safe handling of flammable and explosive chemical materials.
Oil & Gas Industry: Suitable for environments with flammable gases and liquids.
Pharmaceutical Industry: Ensures contamination-free and safe production processes.
Coal Mining: Designed for dusty underground working environments requiring explosion protection.
Specification
Specifications can be customized according to user requirements such as lifting capacity, span, lifting height, and working environment.
Brand Reputation
Weihua Cranes ranks among the top sellers in China's crane industry, boasting high brand awareness and market share. Its products are widely used in numerous national key projects.
Full Service
Weihua provides a one-stop service, encompassing consultation and planning, solution design, installation, and localized technical support worldwide.
Excellent Product Quality
Weihua Crane employs automated production lines and precision machining equipment. Key components are sourced from well-known domestic and international brands.
High Safety
Weihua Lifting strictly adheres to international standards such as GB and FEM. Key structures adopt high safety factors to ensure precise operation.
Customized Explosion-Proof Bridge Crane (QB Type) Solutions
Weihua Crane provides fully customized Explosion-Proof Bridge Crane (QB Type) solutions designed for hazardous environments, ensuring safe, reliable, and efficient lifting operations in explosive gas or dust zones.
Key parameters such as lifting capacity, span, lifting height, duty class, and explosion-proof rating can be flexibly customized to meet strict industrial safety requirements, making it suitable for chemical plants, oil & gas facilities, and hazardous production workshops.
Optional Configurations
Explosion-proof motors and electrical components (Ex d / Ex e)
Cabin control or explosion-proof remote control system
Frequency conversion drive for smooth operation
High-level safety protection and overload monitoring system
ATEX / IECEx certified explosion-proof design
Our engineering team ensures maximum safety, stable performance, and compliance with international explosion-proof standards, providing reliable lifting solutions for hazardous industrial environments.
| Lifting Capacity | 5t | 10t | 16t | 20t | 32t | 50t | 75t |
|
| Span | 10.5–31.5m | |||||||
| The signs of explosion-proof | ExdIIBT4 (ExdIICT4) | |||||||
| Speed | Lifting (m/min) | 5 | 4.3 | 4.2 | 4.1 | 3 | 1.9 | |
| Traveling of electric hoist (m/min) | 19.6(14.6) | 20.5(14.6) | 20.5(13) | 20.5(13) | 20(12.3) | 20(12.3) | 19.1(15.3) | |
| Traveling of crane | 22.3(12) | 22.3(12) | 19(14.5) | 19(14.5) | 17(14.5) | 19.4(14.5) | 19.3(14.4) | |
| Crane rail recommend | 43kg/m | 43kg/m or QU70 | QU70 or 90×90 | QU80 or 90×90 | QU100 | |||
| Operational Model | Remote control; Ground handle; Cabin control | |||||||
| Working Duty | A4 | |||||||
| Power Supply | According to your demands | |||||||
-
