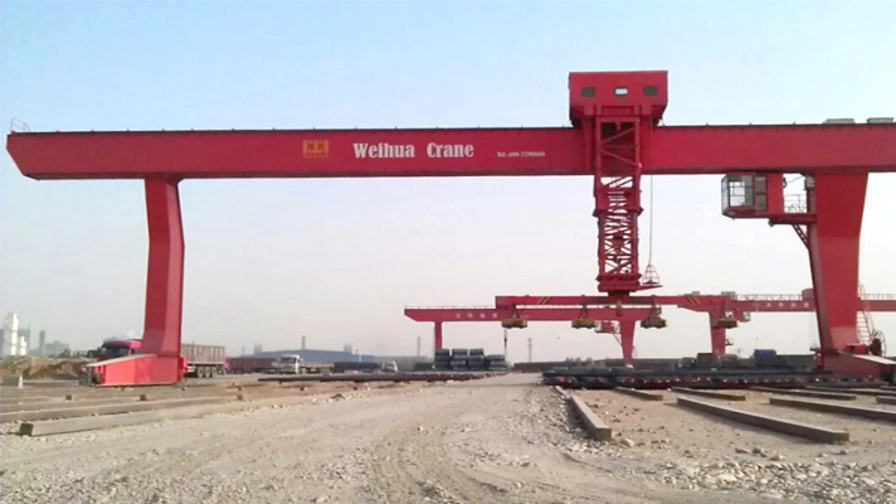

The L-Type Single Girder Gantry Crane with hook is designed for outdoor material handling and conveying operations in warehouses, stockyards, railway stations, and port cargo areas. It can also be equipped with various special spreaders to perform customized lifting tasks in different industrial applications.
Product Description

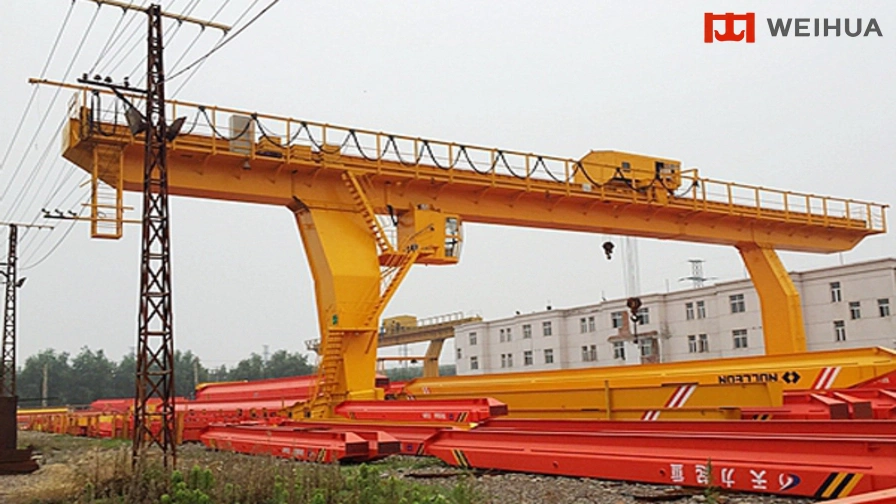

This crane adopts an L-type leg structure, providing large clearance space and flexible operation. It is equipped with a closed operator cabin, with optional heat-insulated cab configurations for harsh environments. The ergonomic console design ensures comfortable and efficient operation.
The power supply system can be configured as either a cable reel or cable trolley system, depending on site conditions. Installation location and specifications can be customized to meet project requirements.
With its reasonable structural layout, excellent visibility, and easy installation, this gantry crane delivers reliable performance in both standard and customized working conditions.
Features & Advantages
Robust Structure: Box-type girder with welded L-type legs, providing increased working space and convenient installation and maintenance.
Flexible Power Supply: Supports cable reel or conductor rail systems, configurable on left or right side.
Reliable Conducting System: Trolley power supply adopts profiled rails and safety sliding conductor systems.
Standardized Components: High degree of standardization, serialization, and generalization for easy maintenance.
Comfortable Operation: Cabin offers wide visibility and is equipped with integrated control console; optional fan, heater, cooler, air-conditioner, and intercom.
Customizable Design: Tailored to user requirements including working environment, power supply type, and span design.
Brand Reputation
Weihua Cranes ranks among the top sellers in China's crane industry, boasting high brand awareness and market share. Its products are widely used in numerous national key projects.
Full Service
Weihua provides a one-stop service, encompassing consultation and planning, solution design, installation, and localized technical support worldwide.
Excellent Product Quality
Weihua Crane employs automated production lines and precision machining equipment. Key components are sourced from well-known domestic and international brands.
High Safety
Weihua Lifting strictly adheres to international standards such as GB and FEM. Key structures adopt high safety factors to ensure precise operation.
Customized L Type Single Girder Gantry Crane Solutions
Weihua Crane provides fully customized L Type Single Girder Gantry Crane solutions designed for efficient outdoor material handling, offering flexible operation and optimized space utilization for various industrial applications.
Key parameters such as lifting capacity, span, lifting height, and leg structure can be flexibly customized to meet different working conditions, making it suitable for handling long materials such as pipes, steel structures, and timber.
Optional Configurations
Electric hoist options (CD/MD type)
Remote control or pendant control system
Frequency conversion drive for smooth operation
Wind-resistant design with rail clamping devices
Customized design for handling long and bulky materials
Our engineering team ensures stable performance, flexible operation, and long service life, providing efficient lifting solutions for yards, warehouses, and outdoor material handling environments.
| Lifting capacity (t) |
Span (m) |
Lifting height (m) |
Work duty | Main lifting (m/min) |
Deputylifting (m/min) |
Trolley travelling (m/min) |
Crane travelling (m/min) |
Power (KW) |
Rail type |
| 5 | 18~22 | 10 | A5 | 9.2 | — | 36.6 | 46.3 | 27.8 | 43Kg/m |
| 26~35 | 11 | 40.1 | 36.8 | ||||||
| 10 | 18~22 | 10 | 8.5 | — | 39.7 | 39.6 | 38 | ||
| 26~35 | 11 | 40.1 | 47 | ||||||
| 16/3.2 | 18~26 | 10 | 7.9 | 11.2 | 39.5 | 40.1 | 64.6 | ||
| 30~35 | 11 | 47.1 | 75.6 | ||||||
| 20/5 | 18~26 | 10 | 7.1 | 9.2 | 39.3 | 40.1 | 67.3 | QU80 | |
| 30~35 | 11 | 47.1 | 78.3 | ||||||
| 32/5 | 18~22 | 10 | 6.3 | 9.2 | 38.6 | 48.2 | 85.5 | ||
| 26~35 | 11 | 38.6 | 93.5 | ||||||
| 50/10 | 18~26 | 10 | 5.9 | 8.5 | 38.5 | 39.7 | 141 | ||
| 30~35 | 12 |
-
