Overhead crane for metallurgy is a hot-selling product manufactured by Weihua. Main lifting mechanism lifts goods with fast speed to meet the requirement of efficient production.

Capacity:

5t,10t,16t,20t,100/32t, 320/80t

Lifting Height:

19.5-28.5m

Span:

20/22m, 28/32m

Voltage/Hertz:

AC 380V/220V, 50-60Hz

Working Class:

A7, A8

CONSULT

Product Overview

Application Scenario

Features

Customized

Parameter

Product Overview

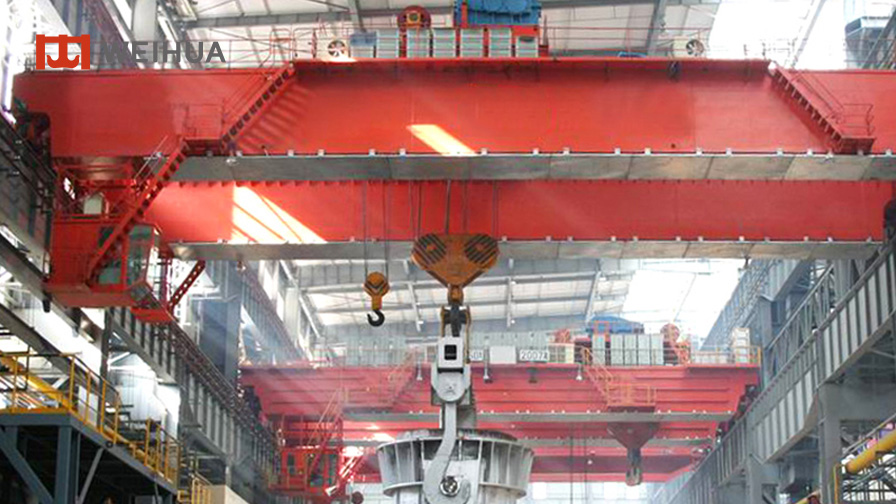

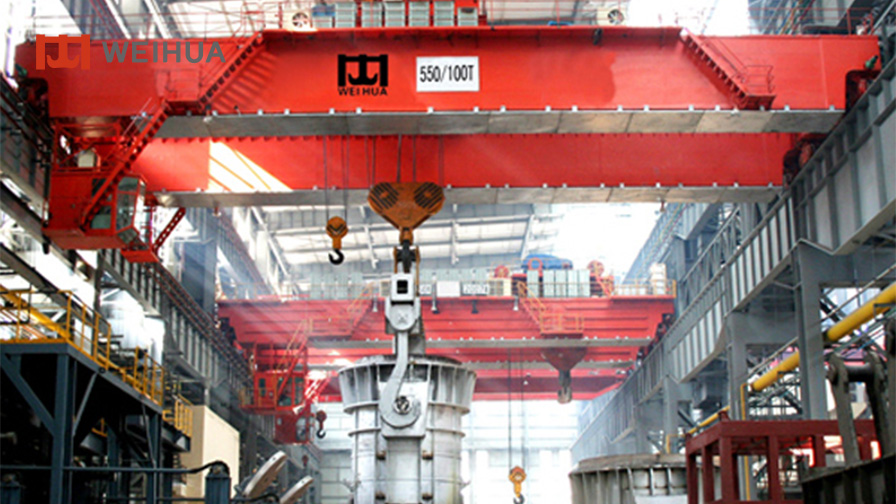

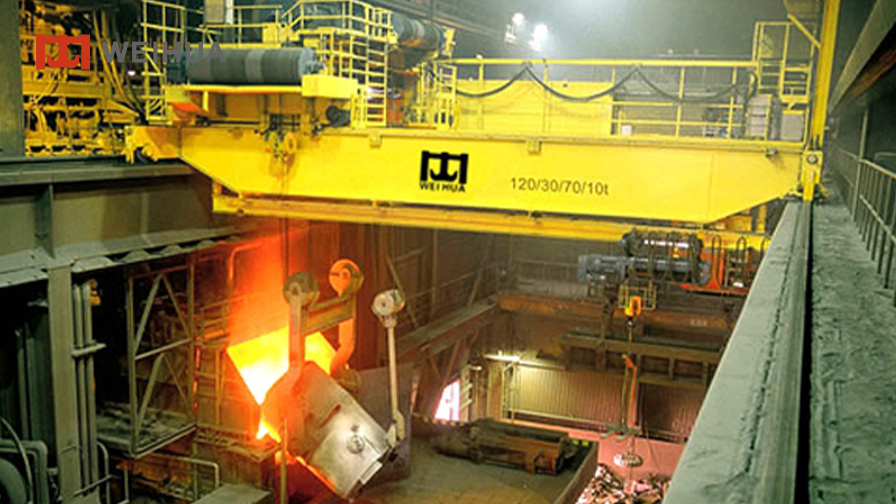

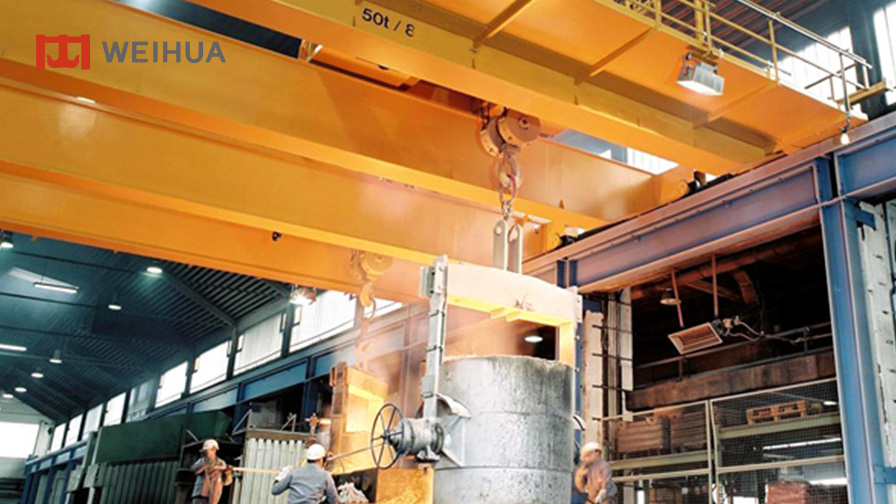

The Ladle Crane is a specialized heavy-duty lifting solution designed for handling molten metal in steel mills and metallurgical plants. As a critical piece of equipment in smelting operations, it ensures safe, precise, and continuous transportation of molten steel and iron under extreme working conditions.

Commonly referred to as a molten metal crane or metallurgical crane, the ladle crane is engineered to perform lifting, tilting, and transferring of ladles filled with high-temperature molten materials. It plays a vital role in maintaining the stability and efficiency of the steel production process.

Designed for extreme heat, heavy loads, and continuous operation, the crane typically operates under A7 or A8 duty classifications, ensuring reliable performance in high-intensity industrial environments. Its robust double girder structure, reinforced components, and heat-resistant design guarantee maximum safety and durability.

Equipped with advanced safety systems such as overload protection, limit switches, emergency braking, and redundant lifting mechanisms, the ladle crane ensures safe handling of molten metal. Precision control systems provide smooth and accurate positioning, reducing operational risks and improving productivity.

Lifting Capacity
50 ton – 500 ton

Working Duty
A7 / A8 Heavy Duty

Working Environment
High-temperature metallurgical workshops

Control Method
Cabin / Remote Control

Application Areas

Steel plants and iron smelting workshops
Non-ferrous metal processing plants
Continuous casting production lines
High-temperature industrial environments

Important Notes

Designed specifically for molten metal handling; requires strict safety compliance
Regular inspection of lifting mechanisms and heat-resistant components is essential
Customized configurations are recommended based on plant layout and process requirements

Application Scenario

Water Conservancy And Hydropower

The dam-top gantry crane is installed on the top of a hydropower station dam. It is mainly used for gate lifting and material handling.

Wind Power Industry

Weihua cranes are widely used in offshore wind power projects, especially for wind turbine installation and large component handling.

Shipyard Cranes

Shipyard gantry cranes are designed for shipbuilding operations, including section lifting, turning, assembly, and launching.

Steel Mill Cranes

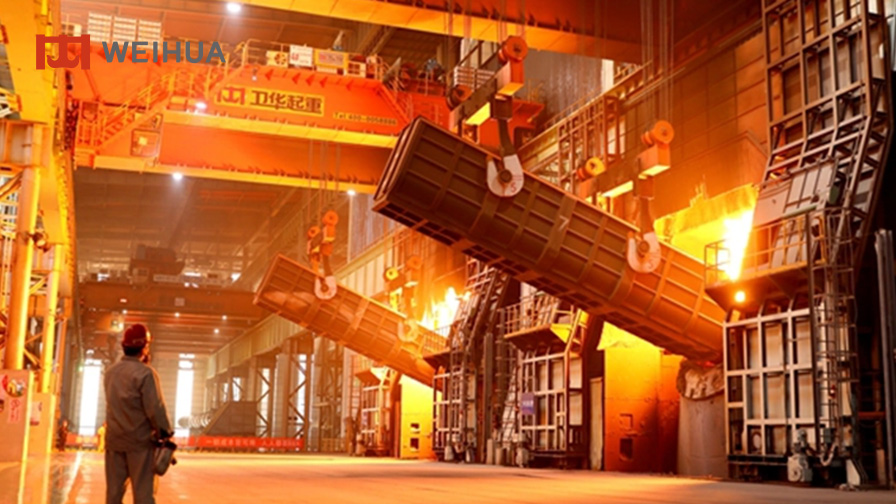

Weihua metallurgical cranes are used in steel mills covering lifting needs from smelting to finished product handling.

Features

Brand Reputation

Weihua Cranes ranks among the top sellers in China's crane industry, boasting high brand awareness and market share. Its products are widely used in numerous national key projects.

Full Service

Weihua provides a one-stop service, encompassing consultation and planning, solution design, installation, and localized technical support worldwide.

Excellent Product Quality

Weihua Crane employs automated production lines and precision machining equipment. Key components are sourced from well-known domestic and international brands.

High Safety

Weihua Lifting strictly adheres to international standards such as GB and FEM. Key structures adopt high safety factors to ensure precise operation.

Customized

Customized Crane for Meltshop | Ladle Crane Solutions

Weihua Crane provides fully customized ladle crane solutions designed for meltshop operations, ensuring safe, stable, and high-efficiency handling of molten metal in extreme high-temperature environments.

Key parameters such as lifting capacity, span, lifting height, working duty, and safety configuration can be tailored to meet the stringent requirements of steelmaking processes, ensuring reliable transportation of molten steel and precise positioning during pouring operations.

Optional Configurations

Dual hoisting mechanism for enhanced safety redundancy
Heat-resistant insulation and protective shielding systems
Frequency conversion control for smooth and precise operation
Intelligent monitoring and fault diagnosis system
Emergency braking and backup safety systems

Our engineering team ensures maximum safety, high reliability, and continuous heavy-duty operation, providing critical lifting solutions for steel plants, foundries, and metallurgical industries.
