32/5-50/10t Double Gider Gantry Crane with Hook

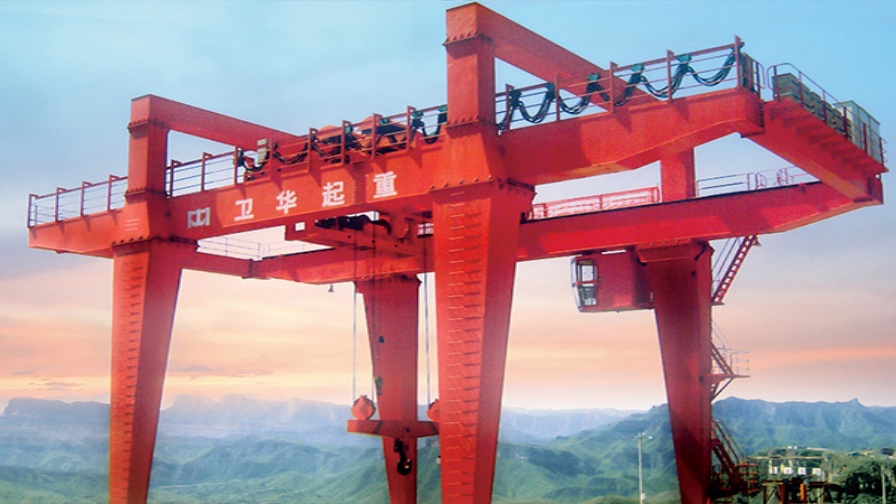

32 5-50 10 t Double Gider Gantry Crane with Hook (4).webp

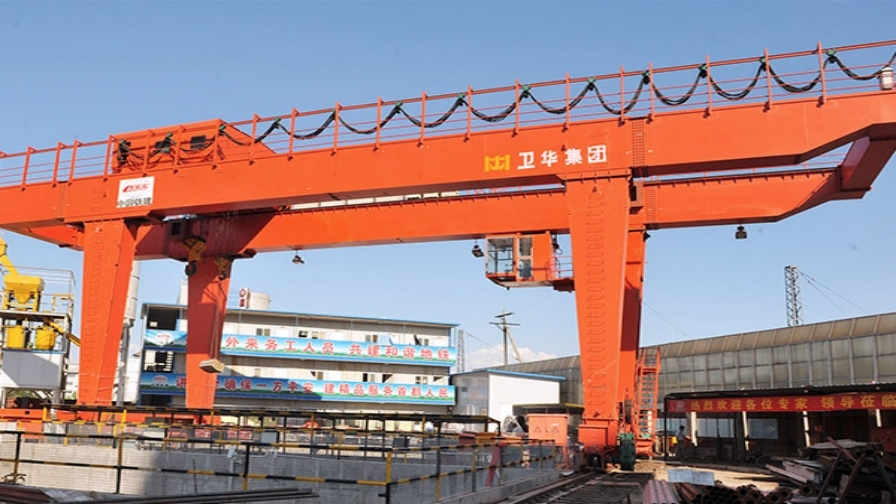

32 5-50 10 t Double Gider Gantry Crane with Hook.webp

Authentication mark:

32/5-50/10 t Double Girder Gantry Crane is a workhorse in industries that handle substantial, heavy materials.

Capacity:

32/5-50/10t

Lifting Height:

10-13m

Span:

18-35m

Voltage/Hertz:

3 phase 50Hz 380V

Working Class:

CONSULT

Product Overview

Application Scenario

Features

Customized

Parameter

Product Overview

Double Girder Gantry Crane with Hook Capacity 32/5 - 50/10t. describes a versatile, dual-hoist gantry crane that comes in a range of main capacities, with the specific model chosen based on the user's maximum lifting needs.

Product Description

Interpretation of the Notation Double Girder Gantry Crane with Hook

32/5 ton model: Main hoist = 32 metric tons, Auxiliary hoist = 5 metric tons.

50/10 ton model: Main hoist = 50 metric tons, Auxiliary hoist = 10 metric tons.

This configuration covers a huge portion of heavy industrial lifting needs. The presence of both a Main Hoist and an Auxiliary (Aux) Hoist on the same trolley is a critical feature:

Main Hoist: Used for the maximum rated loads (32t or 50t). It is strong but slower.

Auxiliary Hoist: Used for frequent, lighter lifts (5t or 10t). It is faster and more precise, improving overall work efficiency. It's also essential for tasks like tilting loads, maintenance, or positioning.

Application Scenario

Water Conservancy And Hydropower

The dam-top gantry crane is installed on the top of a hydropower station dam. It is mainly used for gate lifting and material handling.

Wind Power Industry

Weihua cranes are widely used in offshore wind power projects, especially for wind turbine installation and large component handling.

Shipyard Cranes

Shipyard gantry cranes are designed for shipbuilding operations, including section lifting, turning, assembly, and launching.

Steel Mill Cranes

Weihua metallurgical cranes are used in steel mills covering lifting needs from smelting to finished product handling.

Features

Brand Reputation

Weihua Cranes ranks among the top sellers in China's crane industry, boasting high brand awareness and market share. Its products are widely used in numerous national key projects.

Full Service

Weihua provides a one-stop service, encompassing consultation and planning, solution design, installation, and localized technical support worldwide.

Excellent Product Quality

Weihua Crane employs automated production lines and precision machining equipment. Key components are sourced from well-known domestic and international brands.

High Safety

Weihua Lifting strictly adheres to international standards such as GB and FEM. Key structures adopt high safety factors to ensure precise operation.

Customized

Customized 32/5-50/10t Double Girder Gantry Crane with Hook Solutions

Weihua Crane provides fully customized 32/5-50/10t Double Girder Gantry Crane with Hook solutions, designed based on FEM standards with a robust structure, heavy-duty design, and high efficiency for modern heavy industrial applications.

Key parameters such as lifting capacity (32/5 - 50/10t), span, lifting height, and duty class can be flexibly customized to meet different outdoor and heavy-load operation requirements, while the optimized structural design maximizes working space utilization and improves heavy-load handling efficiency.

Optional Configurations

Frequency conversion control for smooth heavy-load operation
Anti-sway system for precise heavy-load handling
Intelligent monitoring and safety protection system
Energy-saving and low-noise drive system (adapted for heavy-load working conditions)

Our engineering team ensures high efficiency, stable performance, and long service life, making it an ideal lifting solution for stockyards, ports, heavy-duty workshops, and large-scale material handling environments.

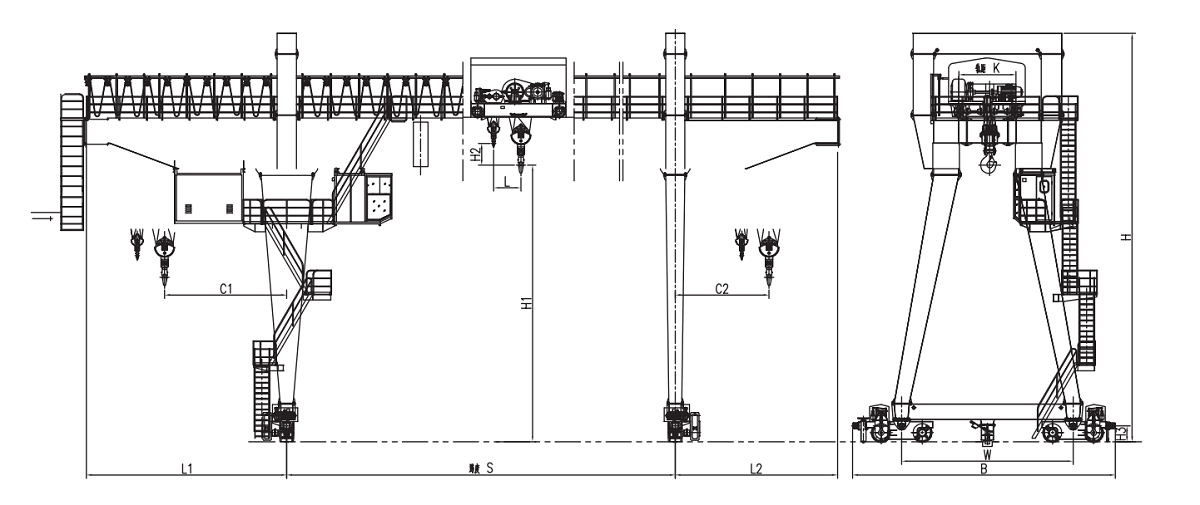

Parameter

Cap	Main	t	32					50
	Aux	t	5					10
Span	S	m	18	22	26	30	35	18	22	26	30	35
		Lifting Height	10		12			10		12
		m	10.79		12.79			10.95		12.95
Duty			A5					A5
Speed	Main	m/min	7.5					5.9
	Aux		12.7					13.2
	Trolley Travelling		37					38.5
	Crane Travelling		38					37.8			44
Limit	L1	mm	7500		10000			8000		10500
	L2		7500		10000			8000		10500
	L		980					1195
	C1		5000		7500			5000		7500
	C2		5000		7500			5000		7500
Main	H	mm	15158	15258	15358	15258	15358	15760	15860	15960	17920	17924
	H1		10000		12000			10000		12000
	H2		790					950
	H3		590	646		646		646		700
	B		9656		10522			10522			11496
	K		2500					2500
	W		6500		7000			7000			7500
	Max.Wheel Loading		KN	240	250	260	285	295	335	345	355	380	395
Power		KW	95.3		113.3			141.5			157.5
Crane Rail Recommended			43kg/m		QU80
Power Supply			50Hz 380V					50Hz 380V
