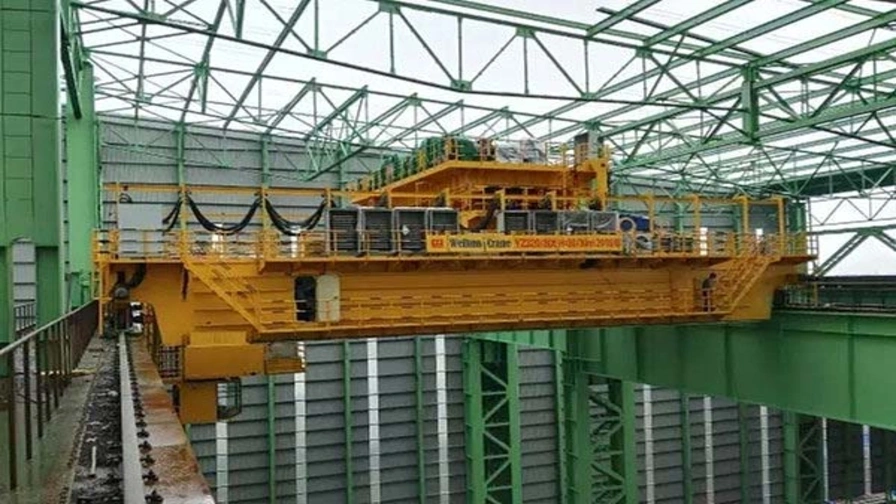

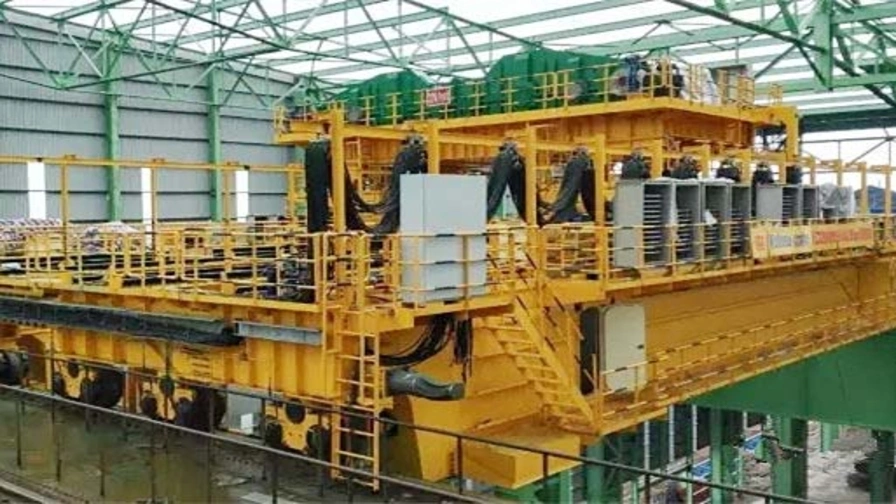

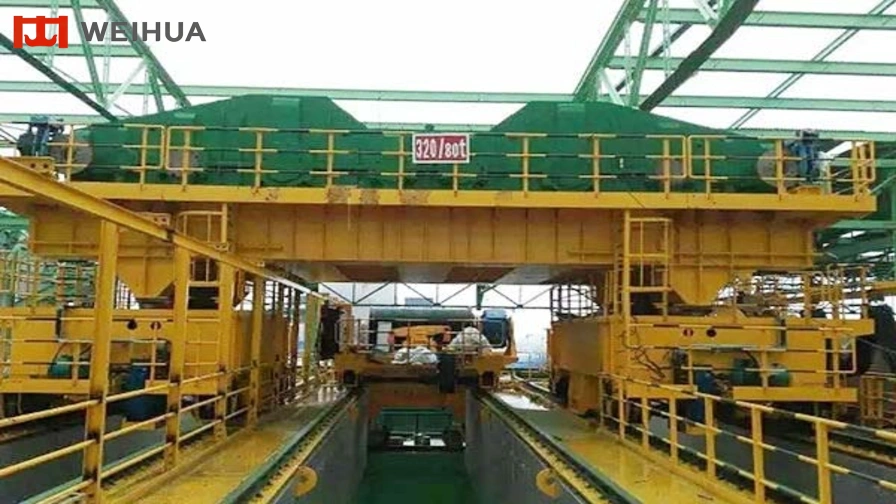

This 320t overhead crane for foundry is the biggest metallurgical foundry crane ever made in Henan Province, China. During manufacture and installation, we have obtained valuable experiences to lay the foundation for manufacturing crane with more technology and complex structure.

Main Structure & Design

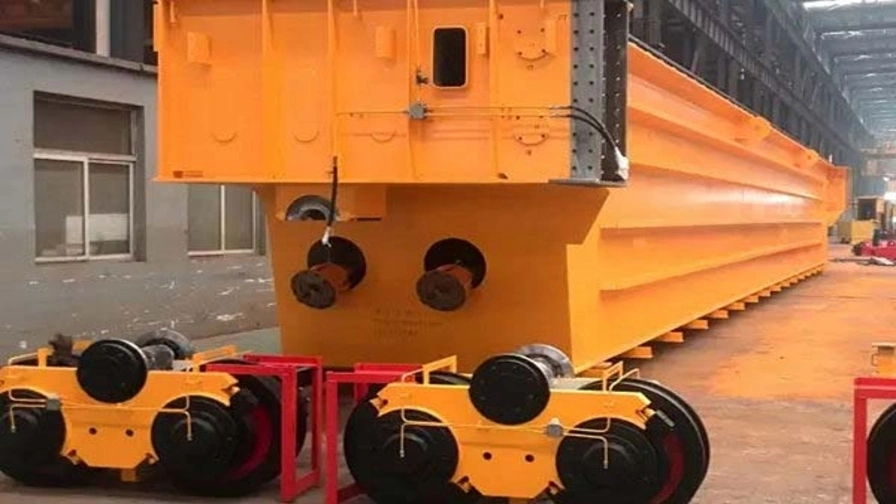

The main structure of this 320t foundry crane is designed with 4 girders and 6 rails. The highlights of this crane are integral processing technology and secondary assembly technology. For the first time assembly, the welding components sizes are fixed and adopt flat position welding to ensure the quality of welding seams; and the secondary assembly is to release welding stress before the integral processing of the bridge to ensure the stability and accuracy of product process precision. The two-times assembly technologies could maximally ensure the precision of gauge, diagonal and span, as well as users' site installation.

Features of Weihua Foundry Ladle Crane

• It adopts Siemens PLC and Siemens inverter for control and drive. At the same time, Profinet is used for communication between PLC and inverter. It is equipped with communication detection function, which can detect the working status of each station in real time.

• A monitoring system is installed to monitor the working status of the crane in real time.

• The hoisting mechanism of the ladle crane adopts redundant system design to ensure the safety and reliability of lifting liquid metal.

• It is with wireless transmission and electronic scales, real-time transmission of the weight of liquid metal.

• Each crane is designed with an electric room, and an electric fan or AC unit is installed in the electric room to ensure the safe and reliable operation of the electrical equipment.

• The 250t ladle crane hoisting mechanism adopts the planetary reducer structure. If one motor fails, it can still complete the lifting work in a short time.

• Mother-child trolley to realize the unmanned automatic hanging ladle and save the cost.

• The overall design is with lightweight and compact structure.

• Low height, light self-weight, small hook limit, large working range.

• High quality parts, durable, safe and reliable.

• Less maintenance and repair costs.

• Small total crane power and low energy consumption.

• Frequency control, smooth lifting and less impact.

Customized 320t Overhead Crane for Foundry Solutions

Weihua Crane provides fully customized 320t Overhead Crane for Foundry solutions designed for foundry plants, steel mills and heavy metallurgical workshop operations, offering superior heavy lifting capacity, stable operation and reliable performance for high-temperature molten metal and heavy casting material management.

Key parameters such as lifting capacity, span, lifting height, and rail gauge can be flexibly adjusted to suit different workshop layouts and severe heavy-load handling requirements, ensuring efficient and safe daily industrial operations.

Optional Configurations

• Electric or hybrid drive trolley options

• Automated control and remote operation system

• Anti-sway and positioning system for precise industrial material handling

• Energy-saving drive systems and regenerative braking

• Customized design to match specific factory yard rail layouts

Our engineering team ensures high efficiency, safety, and long-term reliability, providing advanced heavy-duty overhead crane solutions for modern foundry, metallurgical and large-scale industrial production operations.
