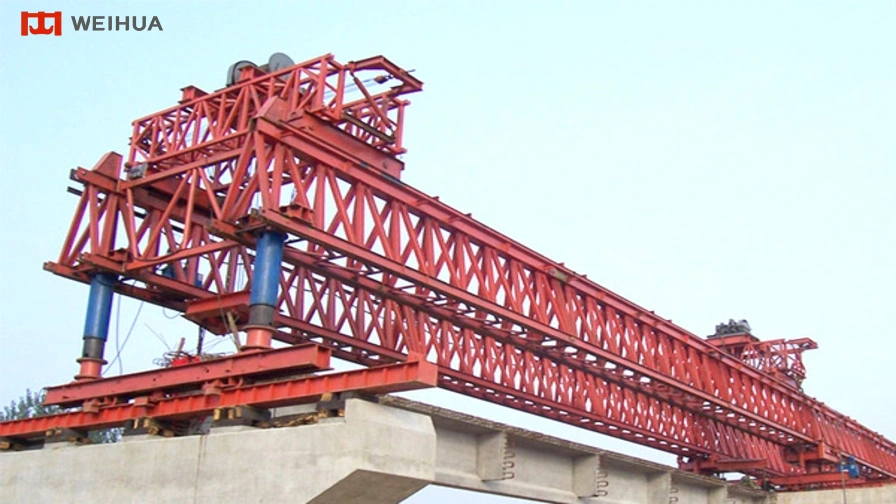

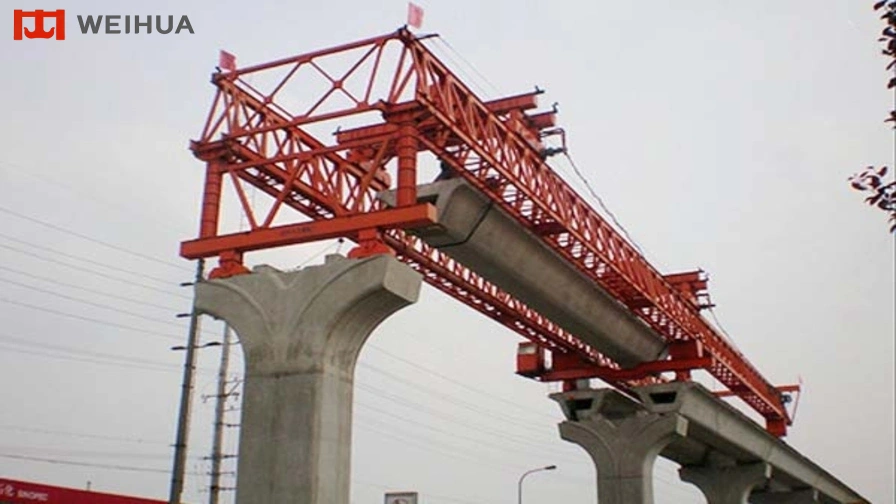

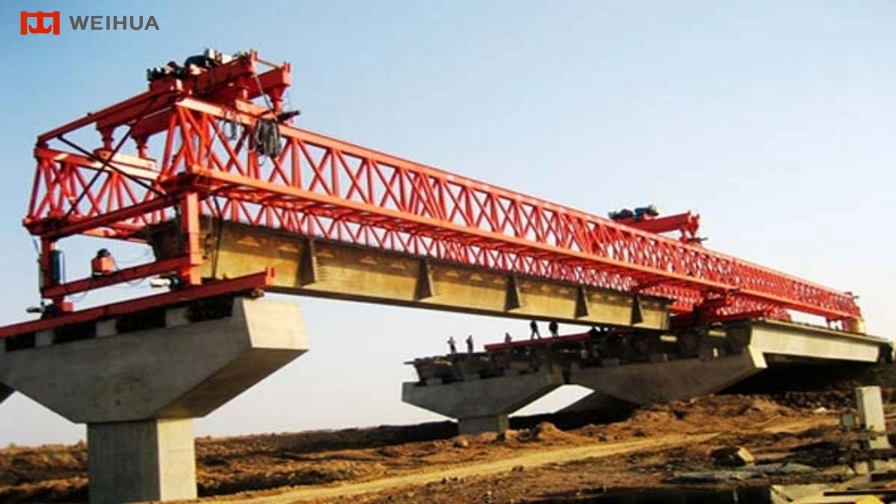

This gantry crane for highway construction is employed to lift the concrete beam or bridge on to the supports of highway construction. It consists of girder longitudinal flat car, girder components, support system, crane transverse, longitudinal shift system, hydraulic system, electric control system, etc.

Types of Highway Construction Gantry Crane

This highway construction crane can be rail type and step type. The rail type crane is mainly used for lifting of beams with length not more than 30m. While the step type crane need no rails, which has no pressure and damage to the highway beam/bridge because the legs can be landed on the supports.

With the high-speed development of highway construction, Weihua is developing various highway cranes adapting to the different working and use requirements such as skew bridge, curved bridge, Dislocation Bridge, heavy beam, variable beam, double-direction construction, construction in tunnels, etc.

Features

• Horizontal operation landing the beam in place at one time;

• Suitable for the construction of inclined(curved)bridge;

• Light weight, convenient and quick transportation, installation and removal;

• Safe and reliable work, small longitudinal cantilever deflection;

• The legs are not landed on bridge deck when longitudinal moving, reducing the pressure on the beam/bridge deck.

Customized Gantry Crane for Highway Construction Solutions

Weihua Crane provides fully customized Gantry Crane for Highway Construction solutions designed for highway engineering sites and construction yard operations, offering high lifting capacity, precise handling, and reliable performance for bridge components and construction materials management.

Key parameters such as lifting capacity, span, lifting height, and rail gauge can be flexibly adjusted to suit different construction site layouts and highway construction handling requirements, ensuring efficient and safe operations.

Optional Configurations

• Electric or hybrid drive trolley options

• Automated control and remote operation system

• Anti-sway and positioning system for precise construction material handling

• Energy-saving drive systems and regenerative braking

• Customized design to match specific construction yard rail layouts

Our engineering team ensures high efficiency, safety, and long-term reliability, providing advanced solutions for modern highway construction projects and engineering yard operations.
