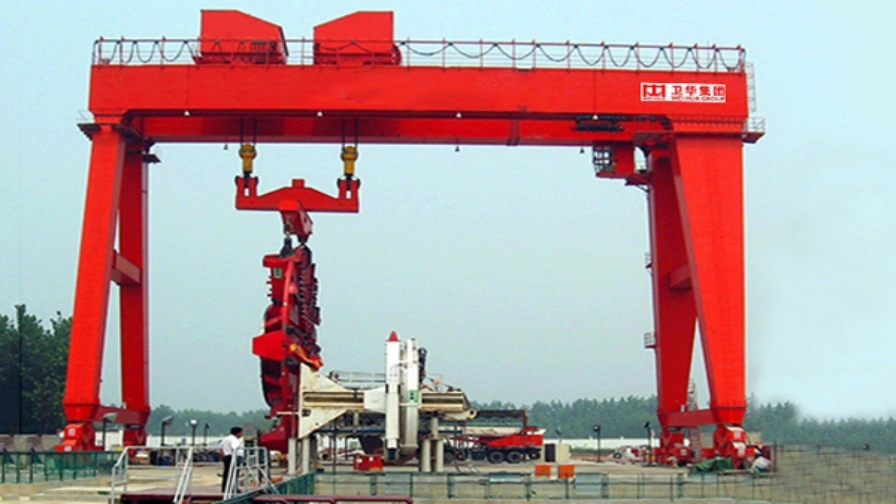

Gantry crane for shield tunneling machine is used for lifting of the cutter and shield body of underground non excavation shield tunneling machine and the tunnel support segment in the process of the construction. The trolley of this gantry crane is a rotating disc adapts to the demand of different digging direction with flexible operation, perfect safety instructions and overload protection device system.
Features of Shield Tunneling Machine Gantry Crane

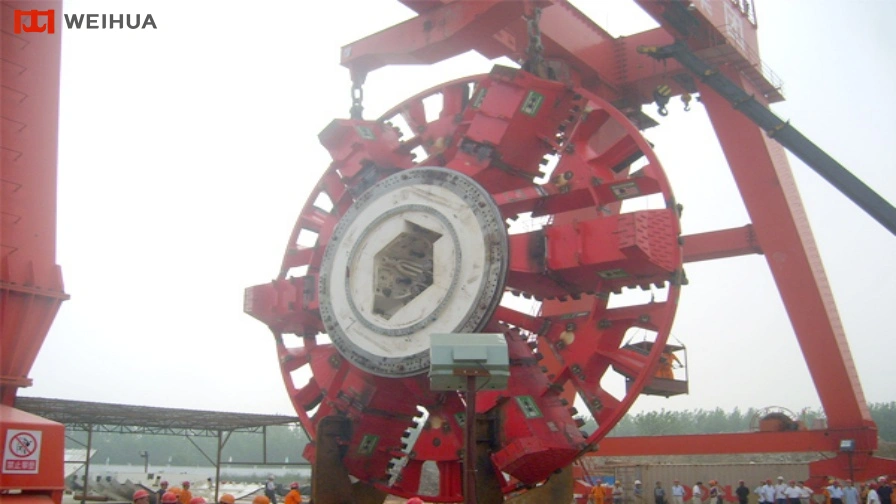

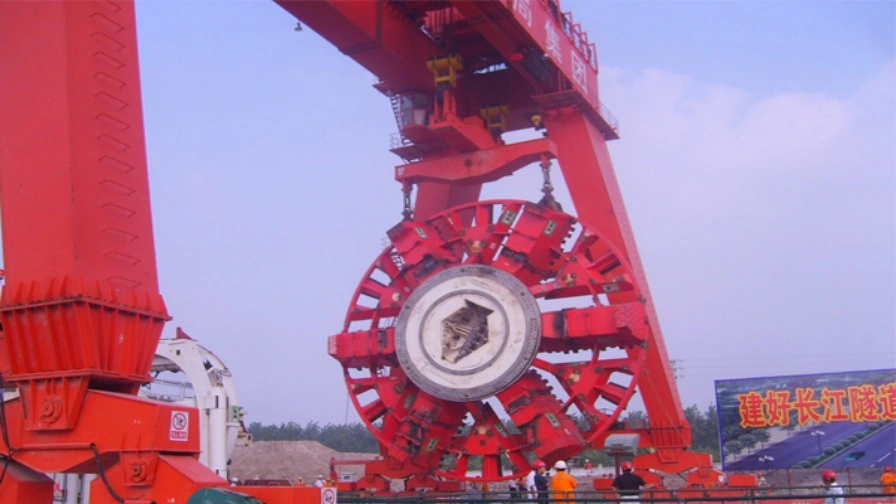

Spreader with 360° rotation is fit for installation of cutter from different angles;

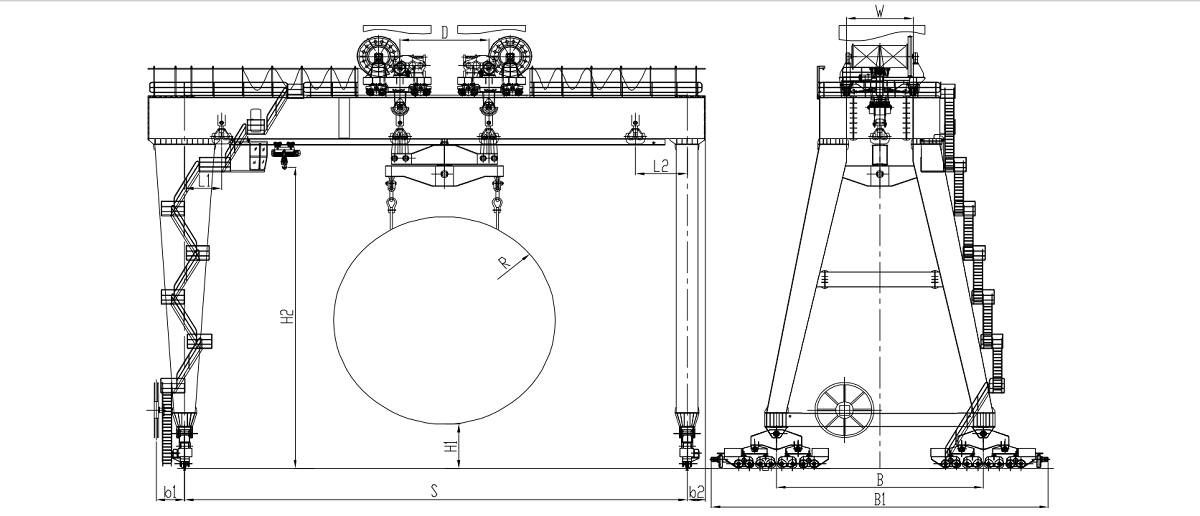

Double trolley mechanism is applied for lifting cutter by double trolley or lifting duct piece by single trolley;
Working Environment
3 phase A.C. 50HZ 380V
The temperature of the working environments is -20 ~ +45 degrees and the Max relative humidity shall be less than 95% (with condensation);
Wind speed shall be less than 20m/s;
Working leave: A3, A4;
Special requests are available;
Brand Reputation
Weihua Cranes ranks among the top sellers in China's crane industry, boasting high brand awareness and market share. Its products are widely used in numerous national key projects.
Full Service
Weihua provides a one-stop service, encompassing consultation and planning, solution design, installation, and localized technical support worldwide.
Excellent Product Quality
Weihua Crane employs automated production lines and precision machining equipment. Key components are sourced from well-known domestic and international brands.
High Safety
Weihua Lifting strictly adheres to international standards such as GB and FEM. Key structures adopt high safety factors to ensure precise operation.
Customized Gantry Crane for Shield Tunneling Machines Solutions
Weihua Crane provides fully customized Gantry Crane for Shield Tunneling Machines solutions designed for tunnel construction sites and shield machine storage yards, offering high lifting capacity, precise handling, and reliable performance for shield tunneling machine transportation and management.
Key parameters such as lifting capacity, span, lifting height, and rail gauge can be flexibly adjusted to suit different tunnel construction site layouts and shield tunneling machine handling requirements, ensuring efficient and safe operations.
Optional Configurations
Electric or hybrid drive trolley options
Automated control and remote operation system
Anti-sway and positioning system for precise shield tunneling machine handling
Energy-saving drive systems and regenerative braking
Customized design to match specific tunnel construction site and storage yard rail layouts
Our engineering team ensures high efficiency, safety, and long-term reliability, providing advanced solutions for modern shield tunneling machine handling, tunnel construction sites and storage yards.
-
