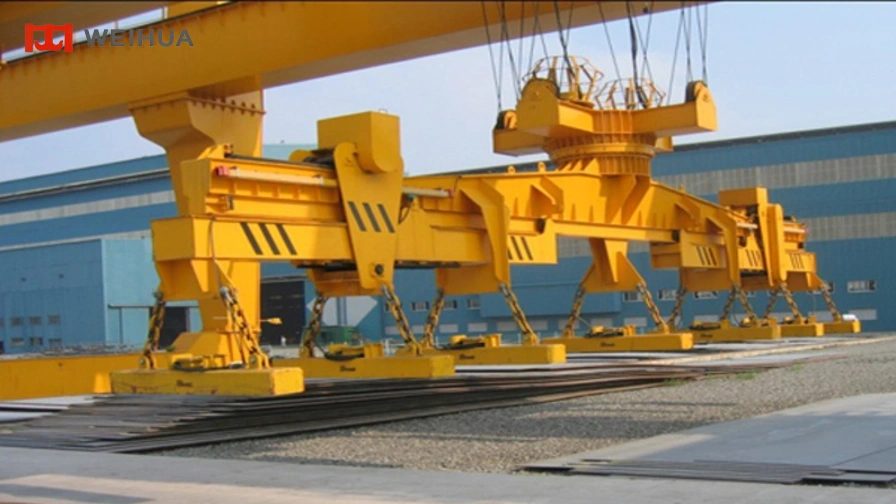

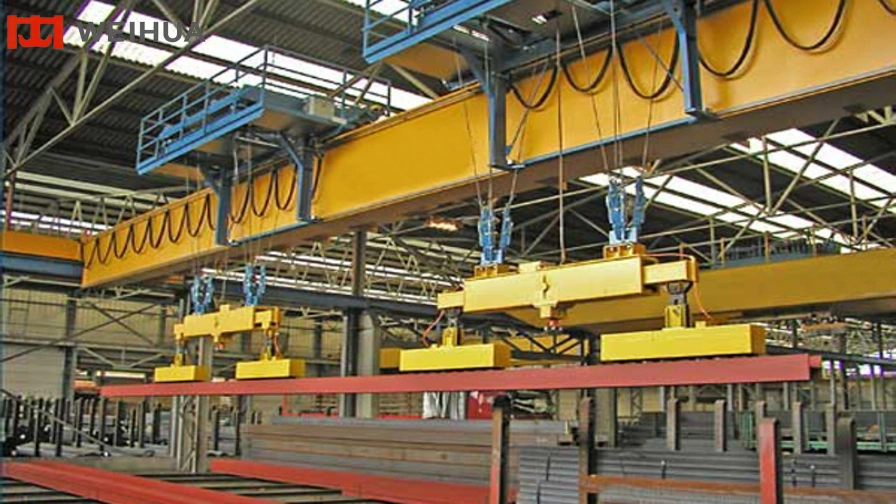

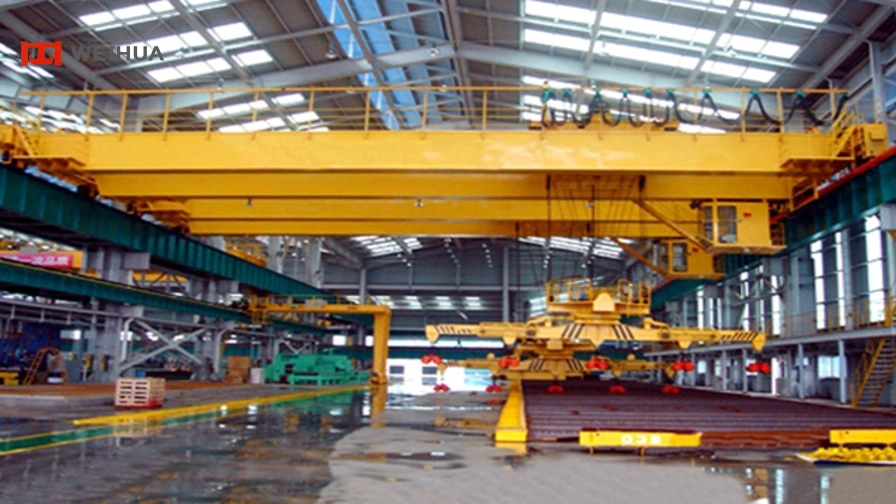

Overhead crane with electromagnetic beam is a specialized crane for lifting and moving steel products, steel plates and steel pipes. This crane is constituted by girder, traveling mechanisms, lifting trolley, electric parts and electromagnet spreader. The electromagnetic suction force of this overhead crane can last 10 minutes after power off. And the shape of electromagnet spreader could be customized bases on the shape of materials to be lifted, the magnet lifter can be round disc type megnetic lifter, square-type megnetic lifter, etc.
There are 2 types of electromagnet spreader: electromagnetic chuck and electromagnetic beam. And electromagnetic beam can also be 2 kinds: non-rotating beam (vertical or parallel to main girder) and rotating beam (Upper beam or hanging beam).
Features of Overhead Crane with Electromagnetic Beam
Three kind entrances to the cab: end, side and top entrances;
The rotating part of hook must be locked by screws during electromagnetic plate working;
Its lifting capacity includes the weight of electromagnetic part, and the weight of whole crane does not include the weight of electromagnetic chuck and its components;
Box-typed girder structure is welded in high strength by robots;
Wheels, wire rope winding drums, gears and couplings are manufactured by CNC with best quality;
Heavy-duty slip ring motor from Wuxi NGP, the best quality in China;
Electric equipment from German Siemens;
Independent control system: wireless control or cab control;
Lifting overload protection device;
Polyurethane buffer;
Crane travel limit switch;
Decompression protection;
Emergency shutdown device;
Current overload protector;
Applications
Weihua cranes are widely used in machinery, metallurgy, power generation, railways, ports, petroleum, chemical, and other industries, serving key national projects and large enterprises.
Brand Reputation
Weihua Cranes ranks among the top sellers in China's crane industry, boasting high brand awareness and market share. Its products are widely used in numerous national key projects.
Full Service
Weihua provides a one-stop service, encompassing consultation and planning, solution design, installation, and localized technical support worldwide.
Excellent Product Quality
Weihua Crane employs automated production lines and precision machining equipment. Key components are sourced from well-known domestic and international brands.
High Safety
Weihua Lifting strictly adheres to international standards such as GB and FEM. Key structures adopt high safety factors to ensure precise operation.
Customized Overhead Crane with Electromagnetic Beam Solutions
Weihua Crane provides fully customized Overhead Crane with Electromagnetic Beam solutions designed for steel mills, scrap yards and metal processing plant operations, offering high lifting capacity, precise handling, and reliable performance for steel scraps, steel plates and ferromagnetic materials management.
Key parameters such as lifting capacity, span, lifting height, and rail gauge can be flexibly adjusted to suit different plant layouts and electromagnetic absorption lifting requirements, ensuring efficient and safe operations in heavy-duty industrial environments.
Optional Configurations
Electric or hybrid drive trolley options
Automated control and remote operation system
Anti-sway and positioning system for precise magnetic material handling
Energy-saving drive systems and regenerative braking
Customized design to match specific industrial workshop rail layouts
Our engineering team ensures high efficiency, safety, and long-term reliability, providing advanced solutions for modern steel mills, waste metal yards and metallurgical processing workshops.
Technical Specifications
| Lifting Capacity (t) | Span (m) | Lifting Height (m) | Work Duty | Lifting Speed (m/min) | Crane Traveling Speed (m/min) | Trolley Traveling Speed (m/min) | Total Power (KW) | Track |
|---|---|---|---|---|---|---|---|---|
| 15 | 22.5~34.5 | 16 | A6 | 13.2 | 36.7 | 101.4 | 63 | 43kg/m or QU70 |
| A7 | 15.8 | 36.6 | 103.9 | 79.5 | ||||
| 20 | 22.5~34.5 | 16 | A6 | 12.6 | 36.2 | 89 | 71 | |
| 15 | A7 | 15.8 | 42.8 | 103.9 | 94.5 | |||
| 32 | 22.5~34.5 | 15 | A6 | 12.5 | 37 | 87.3 | 111.3 | QU70 |
| 16 | A7 | 15.1 | 43.3 | 104.3 | 135.5 | QU80 | ||
| 40 | 22.5~34.5 | 16 | A6 | 11.7 | 37.5 | 87.3 | 128.5 | QU100 |
| A7 | 15.3 | 43.2 | 113.9 | 173 |
-
