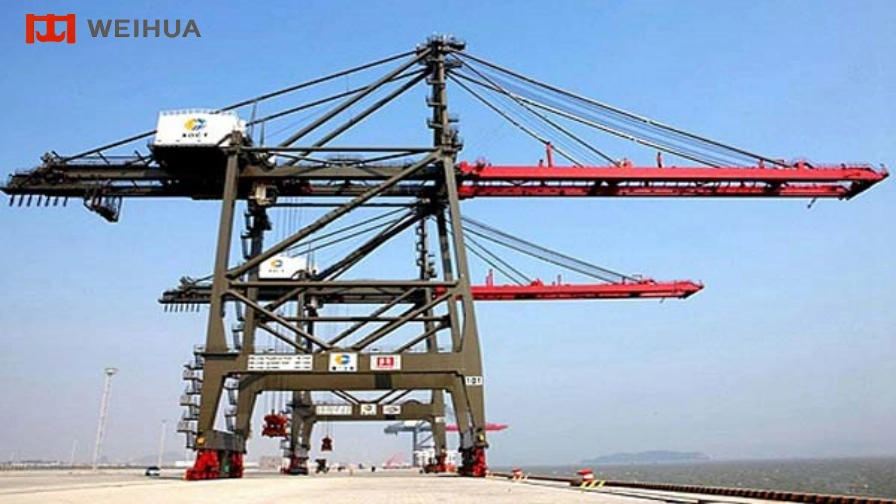

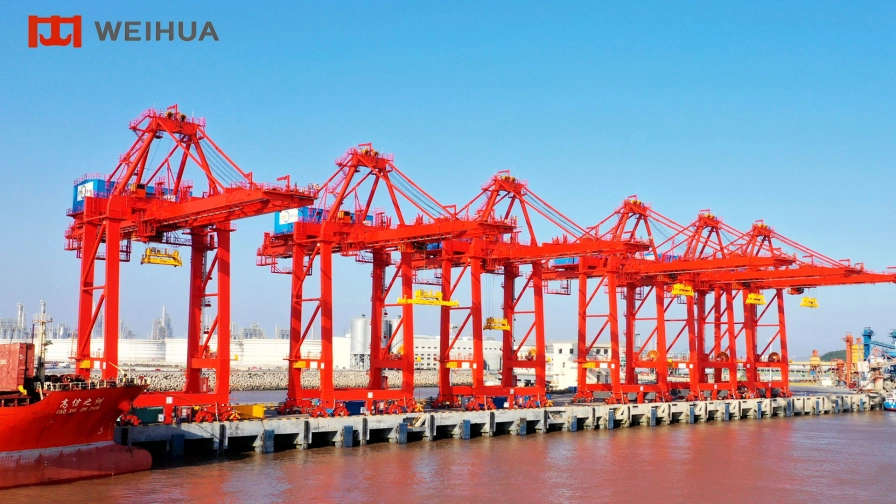

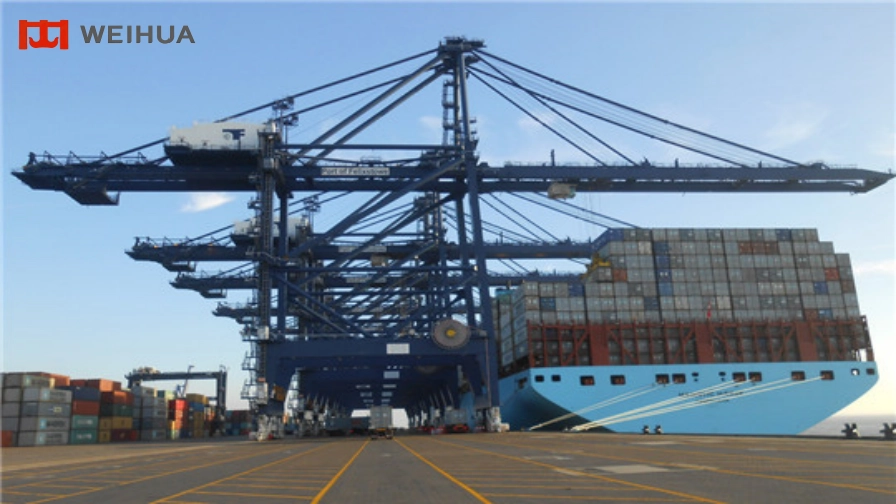

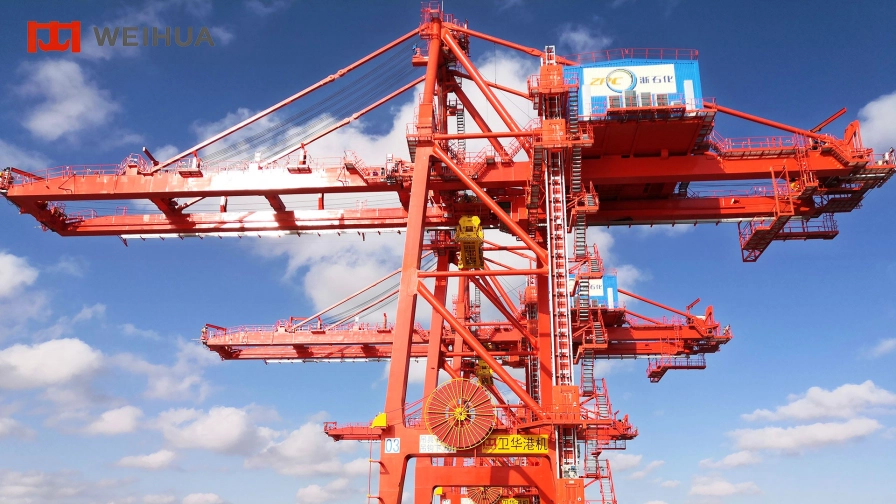

The Ship-to-Shore (STS) Container Crane is the core lifting equipment at the front of container terminals and plays a key role in the efficient operation of modern ports. It is designed for loading and unloading container ships, enabling seamless logistics transfer between vessels and terminals. The STS crane ensures containers can be safely and efficiently transferred from ship to shore or from shore to ship with high precision.

Structure & Working System

The metal structure of the STS crane features high strength and excellent stability, providing a solid foundation for safe operation even under heavy loads.

The crane is designed in strict compliance with international standards such as FEM, DIN, IEC, AWS, and GB, ensuring global quality and advanced performance.

The electrical control system adopts full digital AC frequency conversion and PLC control technology, enabling precise and flexible control of all mechanisms.

The lifting mechanism is capable of handling container loads from 35 tons to 65 tons, ensuring stable lifting of both loaded and empty containers. The trolley system enables accurate horizontal movement across the bridge for precise container positioning. The gantry traveling mechanism ensures stable movement along quay rails, meeting loading and unloading requirements at different ship positions. The tilting mechanism adjusts operating angles according to different vessel conditions for improved efficiency.

Key Components

The trolley assembly works as the core unit for container handling and operates in coordination with other systems for smooth performance. The tilting and cabin anti-collision protection system acts as a safety safeguard, quickly responding to abnormal situations such as container swing or cabin impact, preventing equipment damage and ensuring operational safety.

Additional auxiliary devices further enhance system reliability, operational convenience, and overall safety performance.

Advantages

The STS quay crane is equipped with various single and double container spreaders to meet different operational requirements. An optional electronic anti-sway system effectively reduces container swinging, improving safety and efficiency.

It adopts frequency conversion multi-drive feedback technology, enhancing overall machine performance. With large lifting capacity and long outreach, it covers a wider working range. Real-time position data collection enables intelligent control of spreader movement, ensuring precise and efficient container handling.

Customized STS Container Cranes Solutions

Weihua Crane provides fully customized Ship-to-Shore (STS) Container Crane solutions designed for high-efficiency container loading and unloading operations at modern ports, ensuring fast turnaround and reliable performance.

Key parameters such as lifting capacity, outreach, back reach, lifting height, and rail gauge can be flexibly customized to match different vessel sizes and terminal layouts, enabling efficient ship-to-quay container transfer operations.

Optional Configurations

• Automatic spreader for different container sizes

• Advanced anti-sway control system for precise positioning

• PLC-based intelligent control and remote operation system

• Energy-saving frequency conversion drive system

• Real-time monitoring and smart port integration system

Our engineering team ensures high-speed operation, maximum safety, and long-term reliability, providing advanced STS crane solutions for efficient port container handling and global logistics operations.
