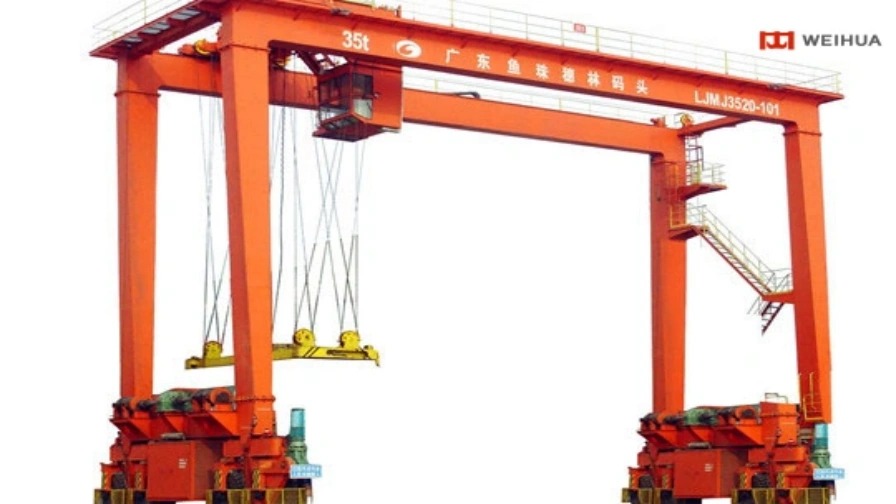

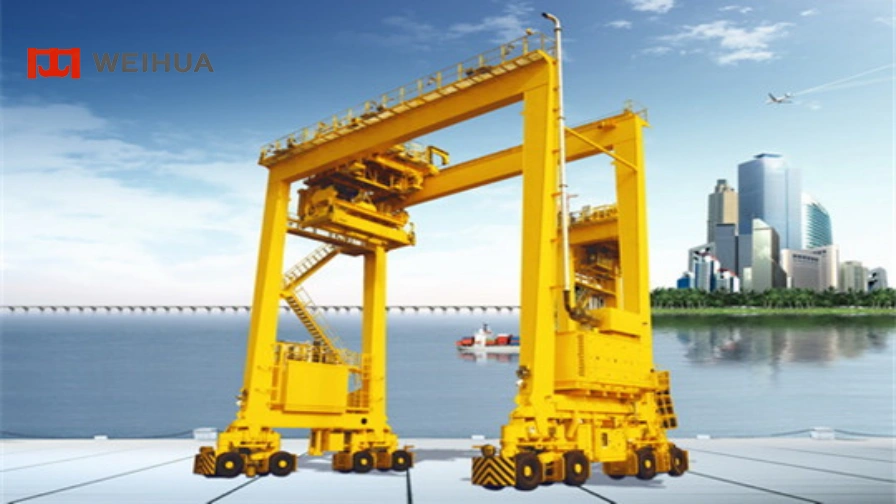

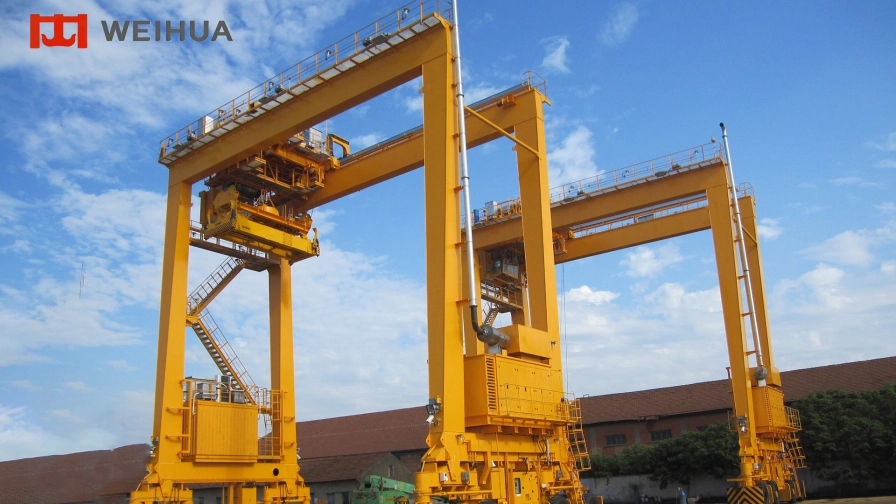

The Rubber Tyred Container Gantry Crane (RTG) is a highly efficient container handling solution widely used in ports, container yards, and logistics terminals. With flexible rubber tire movement and advanced control systems, it ensures high stacking efficiency, precise positioning, and reliable operation.

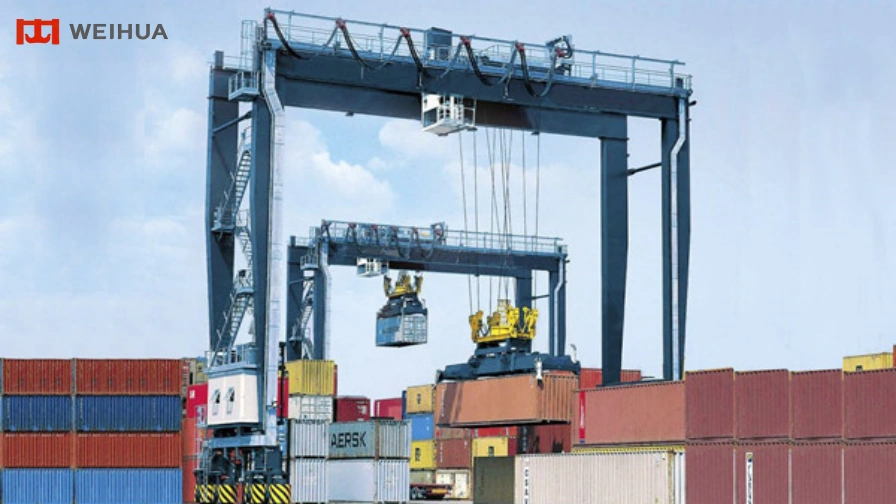

This crane is designed for container stacking, loading, and unloading operations in busy terminal environments. Equipped with multi-lifting point spreaders, it can handle various container sizes such as 20ft, 40ft, and 45ft containers with high efficiency.
The RTG adopts a full hydraulic drive system for both traveling and hoisting mechanisms, enabling stepless speed control and smooth operation. Its closed hydraulic circuit provides high transmission efficiency, low failure rate, and stable performance.
With 360° steering capability and flexible tire movement, the crane can move freely within container yards. The integrated CAN-BUS control system ensures precise control, improved safety, and efficient operation management.
5 ton – 40 ton
20ft / 40ft / 45ft Containers
90° / 20° / 45° Multi-directional movement
Full Hydraulic with Stepless Speed Control
Key Features
Flexible rubber tire movement with 360° steering capability
Full hydraulic drive system with smooth and stepless speed control
Specialized spreaders for standard container handling
Three-in-one reducer for stable performance and easy maintenance
Advanced CAN-BUS control system for precise and intelligent operation
Equipped with safety indicators and overload protection devices
Application Areas
Container yards and port terminals
Railway freight stations and intermodal logistics hubs
Large-scale storage and transshipment areas
International logistics and shipping facilities
Important Notes
Regular hydraulic system inspection is required to maintain performance
Ensure stable ground conditions for safe crane operation
Custom configurations are available for special container handling needs
Brand Reputation
Weihua Cranes ranks among the top sellers in China's crane industry, boasting high brand awareness and market share. Its products are widely used in numerous national key projects.
Full Service
Weihua provides a one-stop service, encompassing consultation and planning, solution design, installation, and localized technical support worldwide.
Excellent Product Quality
Weihua Crane employs automated production lines and precision machining equipment. Key components are sourced from well-known domestic and international brands.
High Safety
Weihua Lifting strictly adheres to international standards such as GB and FEM. Key structures adopt high safety factors to ensure precise operation.
Customized Rubber Tyred Container Gantry Crane Solutions
Weihua Crane provides fully customized Rubber Tyred Container Gantry Crane (RTG) solutions tailored to container yard and terminal requirements, ensuring flexible operation and high efficiency in container handling.
Key parameters such as lifting capacity, stacking height, span, and wheel configuration can be flexibly customized to suit different container yard layouts and operational needs, supporting efficient container stacking and transportation.
Optional Configurations
Diesel-electric or full electric drive system
Remote control and automated operation system
Anti-sway and precise positioning technology
GPS positioning and yard management system integration
Energy-saving and eco-friendly power solutions
Our experienced engineering team ensures high efficiency, flexible mobility, and reliable container handling performance, providing advanced RTG solutions for modern ports and logistics terminals.

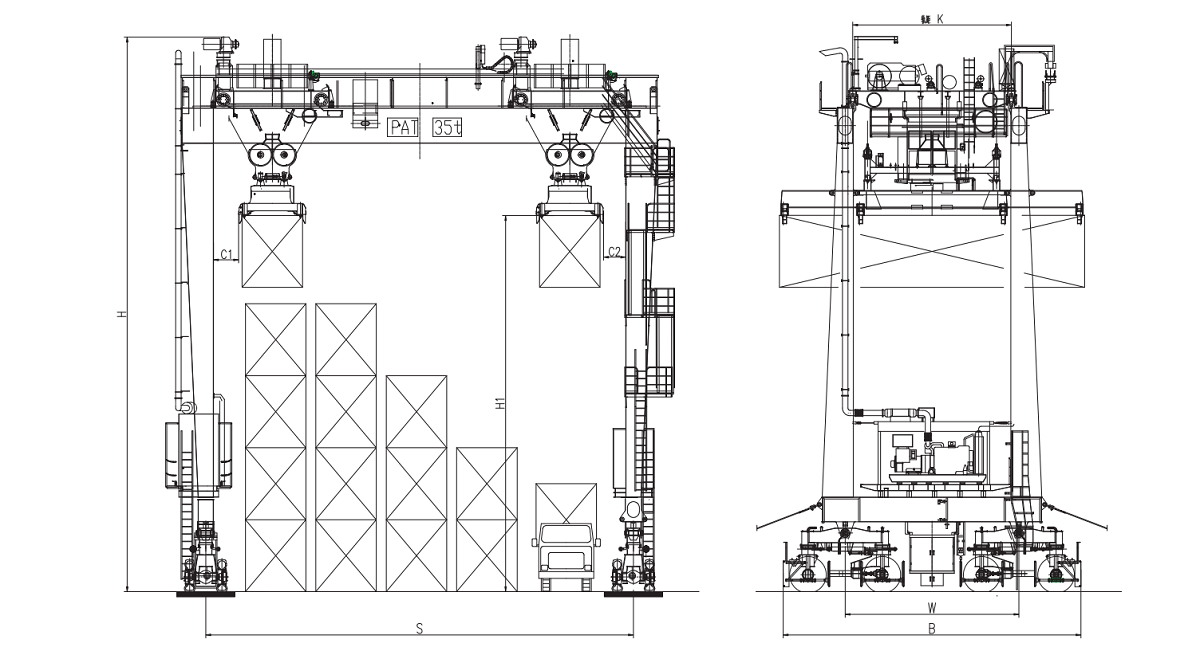

| Model | LJ35/40-23 | Light Type LJ40-32 |
| Lifting Capacity(under spreader)(t) | 35, 40 | 40 |
| Work Duty | A7, A8 | A6, A7 |
| Span(m) | 23, 47 | 23, 47 |
| Lifting Height(m) | 12.2~17.8 | 16.5 |
| Stack Layers/Passing Layers | 3/4~5/6 | 5/6 |
| Container Model | 20’, 40’, 45’ | 20’, 40’, 45’ |
| Spreader Rotating Angle | ±5° | ±5° |
| Hoisting Speed(m/min) | 13/26, 23/52 | 12/18, 18/28 |
| Cross Travel Speed(m/min) | 50, 70 | 24 |
| Long Travel Speed(m/min) | Full Load-90, Without Load-130 | Full Load-20 Without Load-40 |
| Max. Wheel Load(KN) | 310 | 310 |
| Total Rating(KW) | 150, 230 | 110, 150 |
| Power Supply | Electric, Diesel Engine, Electric-diesel Engine | |
-
