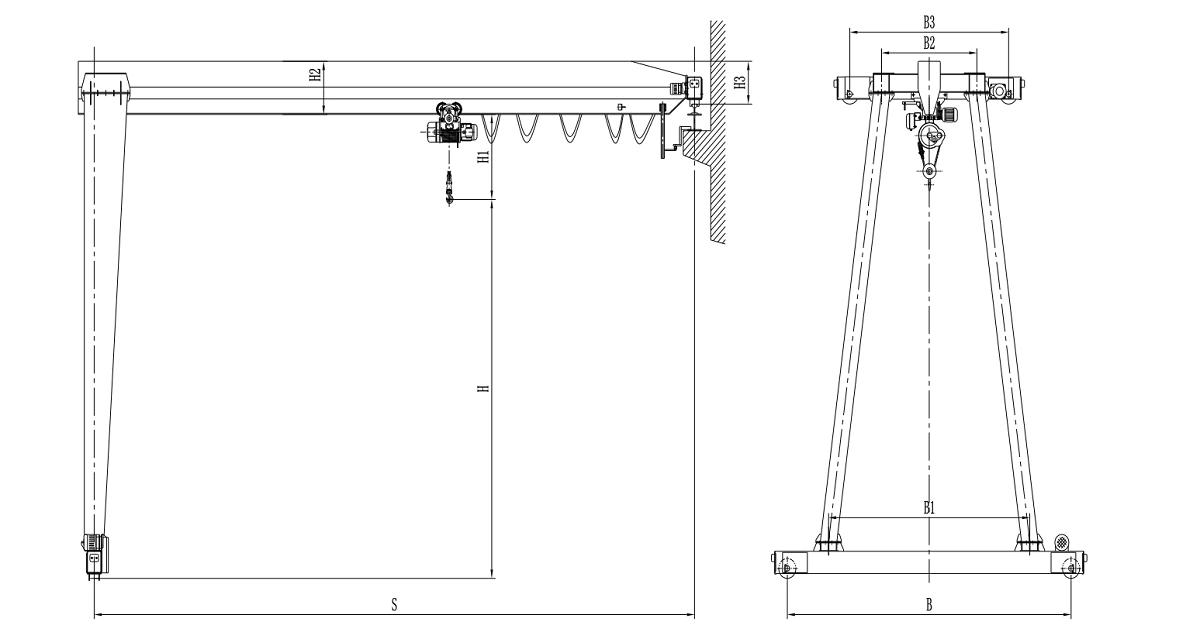

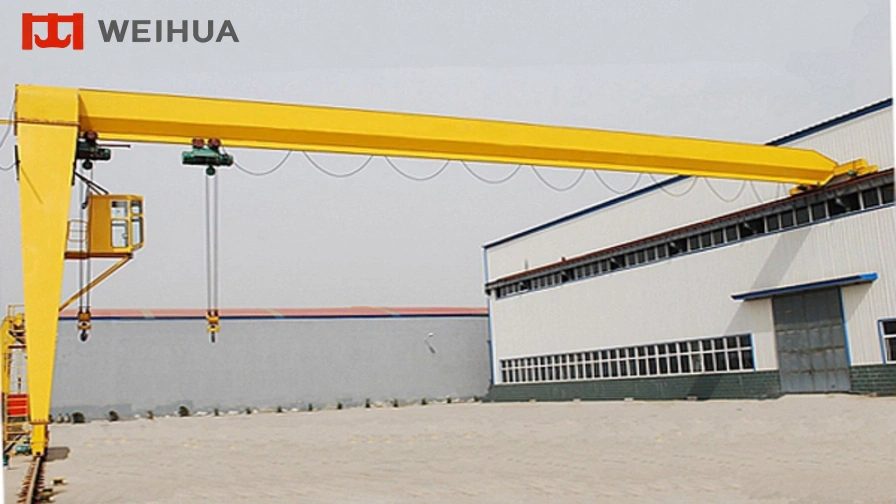

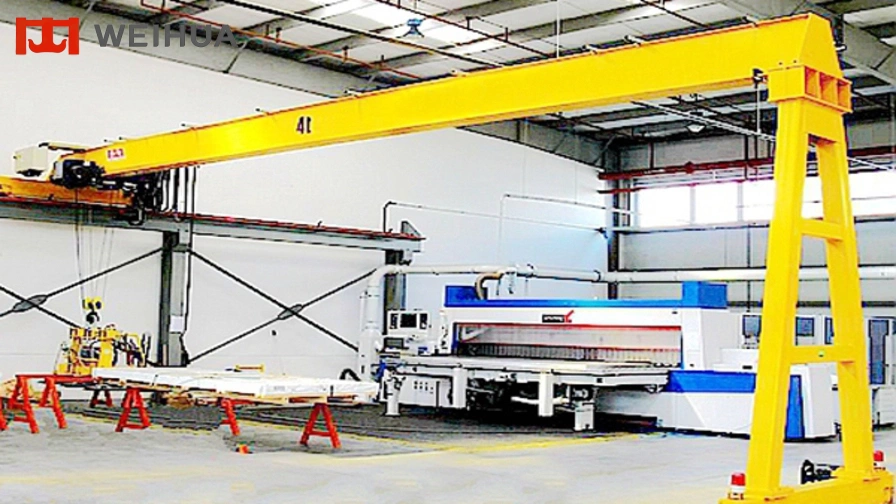

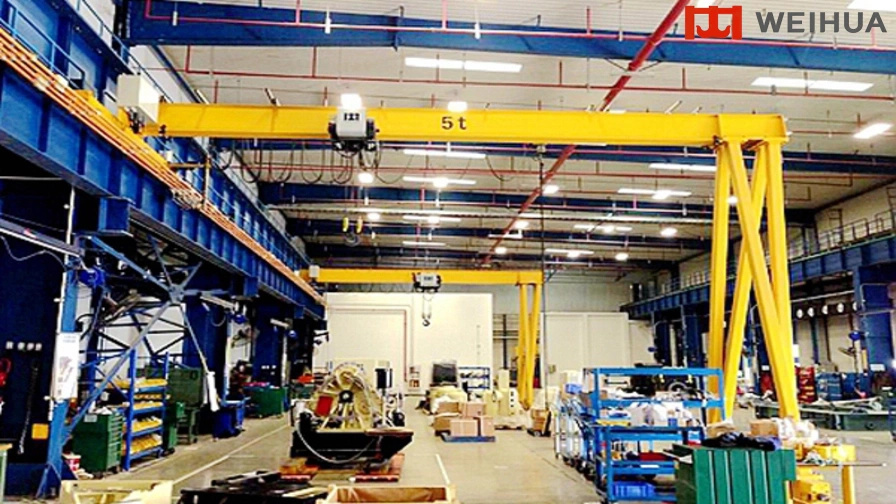

This single girder semi gantry crane is a general purpose light crane used in workshop or outdoors. The leg height of this single girder semi-gantry crane can be different according to the engineering needs on the construction field. The single girder semi gantry crane has the features of simple structure, easy installation, light weight, good wind resistance. The Main girder is mostly bias rail box type structure.
Performance & Matching Equipment
Compared with the double girder gantry crane, the lifting capacity is smaller, generally ≤50t, and the span ≤35m. Single girder semi-gantry crane can be used with CD1, MD1 hoists. It can be remote control and floor control.
Safety Protection of Single Girder Semi Gantry Crane
Overload limiter;
Polyurethane buffer, long service life and impact resistance;
Crane travelling limit switch;
Loss pressure protection, fault phase protection;
Emergency stop system;
Lifting height limiter;
Brand Reputation
Weihua Cranes ranks among the top sellers in China's crane industry, boasting high brand awareness and market share. Its products are widely used in numerous national key projects.
Full Service
Weihua provides a one-stop service, encompassing consultation and planning, solution design, installation, and localized technical support worldwide.
Excellent Product Quality
Weihua Crane employs automated production lines and precision machining equipment. Key components are sourced from well-known domestic and international brands.
High Safety
Weihua Lifting strictly adheres to international standards such as GB and FEM. Key structures adopt high safety factors to ensure precise operation.
Customized Single Girder Semi-Gantry Crane Solutions
Weihua Crane provides fully customized Single Girder Semi-Gantry Crane solutions designed for factory workshops, indoor and outdoor stockyards and limited space working areas, offering high lifting capacity, precise handling, and reliable performance for industrial materials and equipment management.
Key parameters such as lifting capacity, span, lifting height, and rail gauge can be flexibly adjusted to suit different site layouts and general material handling requirements, ensuring efficient and safe operations.
Optional Configurations
Electric or hybrid drive trolley options
Automated control and remote operation system
Anti-sway and positioning system for precise industrial goods handling
Energy-saving drive systems and regenerative braking
Customized design to match specific workshop and yard rail layouts
Our engineering team ensures high efficiency, safety, and long-term reliability, providing advanced solutions for modern industrial workshops, stockyards and daily material handling operations.
| Lifting capacity (t) | Span (m) | Lifting height (m) | Work duty | Main lifting speed (m/min) | Deputy lifting speed (m/min) | Trolley travelling speed (m/min) | Crane travelling speed (m/min) | Power (KW) | Rail type | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 5 | 18-26 | 10 | A5 | 9.2 | — | 37.2 | 37.7 | 27.8 | 43Kg/m | ||
| 30-35 | 12 | 36.8 | |||||||||
| 10 | 18-22 | 10 | 8.5 | — | 37.2 | 37.7 | 38 | ||||
| 26 | 10 | ||||||||||
| 30-35 | 11 | 47 | |||||||||
| 20/5 | 18-26 | 10 | 7.1 | 9.2 | 36.6 | 40.1 | 67.3 | ||||
| 30-35 | 12 | 44 | 78.3 | ||||||||
| 32/5 | 18-26 | 10 | 6.3 | 9.2 | 29.8 | 38 | 85.5 | ||||
| 30-35 | 12 | 40 | 93.5 | ||||||||
| 50/10 | 18-26 | 10 | 5.9 | 8.5 | 31 | 40.1 | 141.5 | ||||
| 30-35 | 12 | 44 | 157.5 | ||||||||
| 75/20 | 18-26 | 12 | 3.9 | 7.2 | 38.4 | 3.7-37 | 146 | QU80 | |||
| 30-35 | 12 | ||||||||||
| 100/20 | 18-26 | 12 | 3.1 | 7.2 | 33.9 | 3.23-32.3 | 162 | ||||
| 160/50 | 18-26 | 15 | 3.5 | 5.9 | 22.5 | 2.8-28 | 242 | QU100 | |||
| 200/50 | 18-35 | 15 | 3.5 | 5.9 | 29 | 2.8-28 | 299 | ||||
| 320/80 | 18-35 | 15 | 3.6 | 6 | 16.7 | 2.8-28 | 476 | ||||
| 400/30 | 18 | 18 | 0.15-1.5 | 6 | 10 | 18 | 275 | QU120 | |||
| 500/80 | 28.5 | 33 | 0.15-1.5 | 0.6-6 | 1.36-13.6 | 1.6-16 | 350 | ||||
| 600/80 | 36 | 22 | 0.13-1.3 | 0.4-4 | 1.5-15 | 2.5-25 | 405 | ||||
| 800/10 | 36 | 14 | 0.1-1 | 7 | 0.5-5 | 1-10 | 330 |
-
