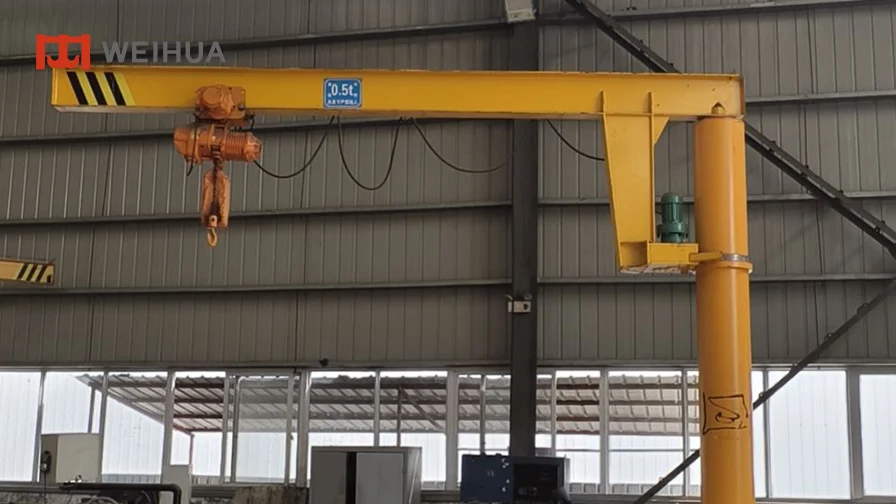

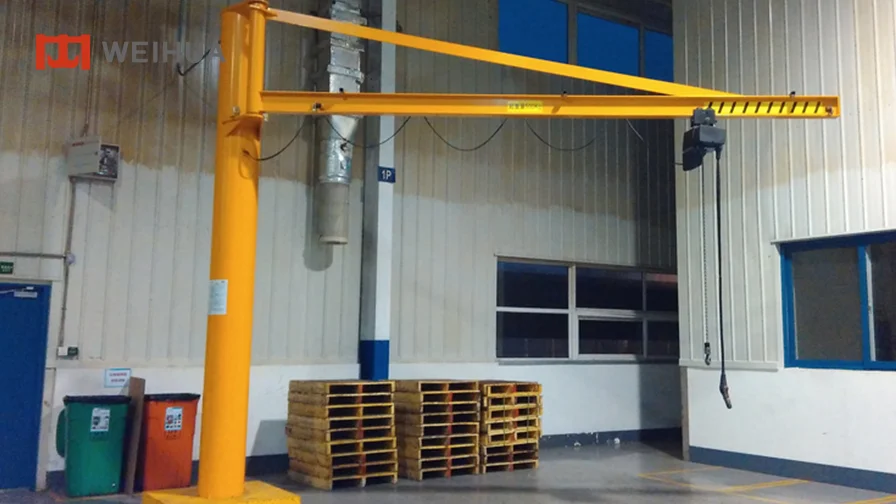

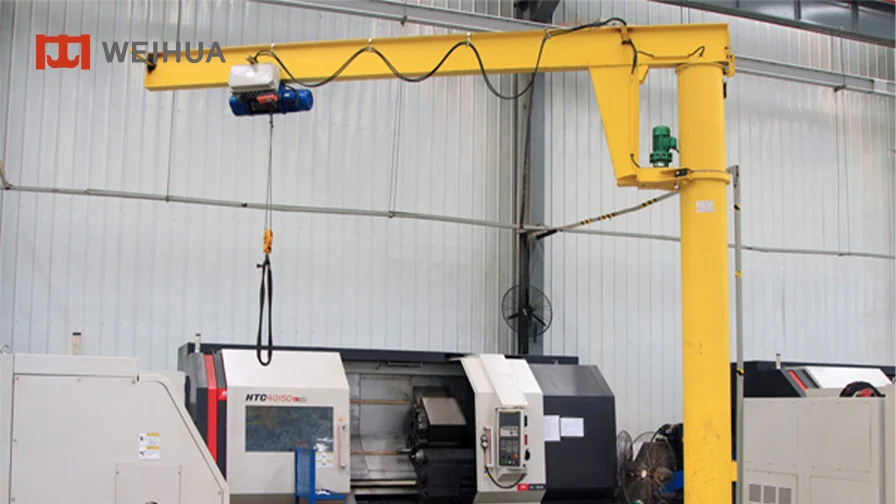

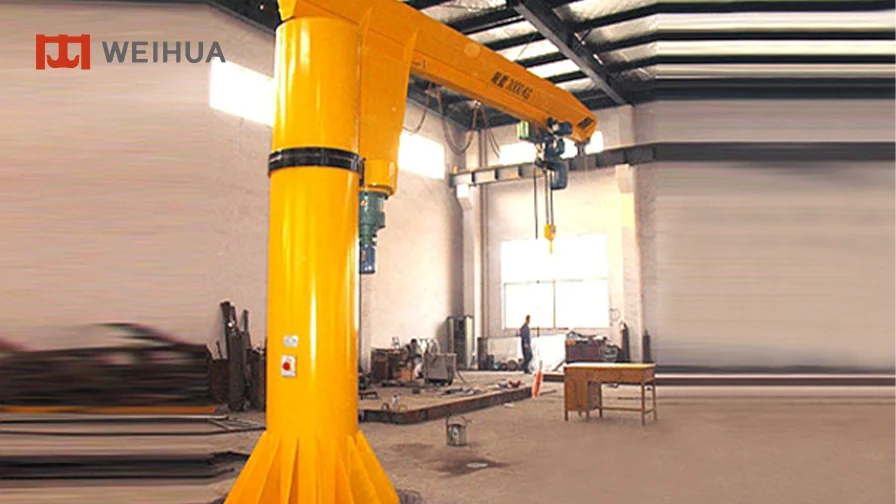

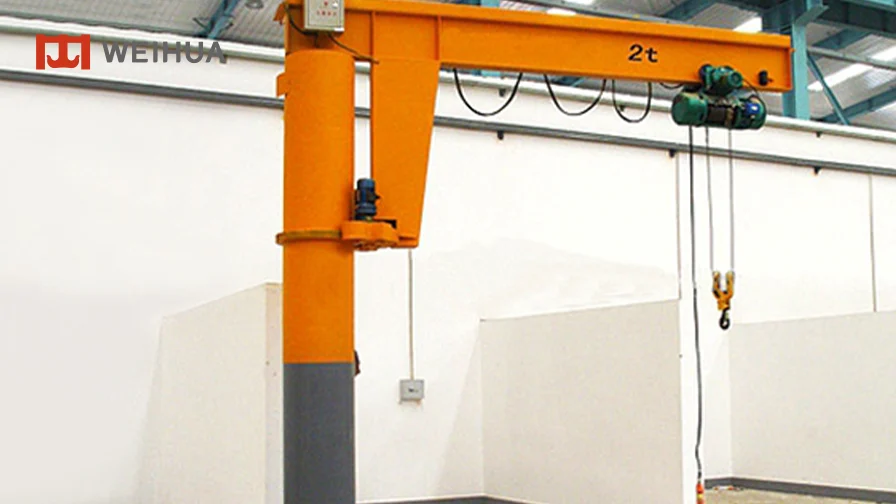

Floor-Mounted Jib Crane

Floor-Mounted Jib Crane adopts a floor-fixed column structure and 360° slewing design, with flexible rotation and independent operation as core features.

Capacity:

1~10t

Lifting Height:

1~12m

Jib Length:

3~10m(Customized)

Voltage/Hertz:

3 Phase, 380V, 50Hz

Working Class:

CONSULT

Product Overview

Application Scenario

Features

Customized

Parameter

Product Overview

Product Name: Floor-Mounted Jib Crane

Model: BZ

Features: Unique structure, flexible, operation in Three-dimensional space, especially suitable for short distance and intensive operation.

Application: Workshop, warehouse, wharf, etc.

This floor mounted jib crane is a small and medium lifting equipment. It has the advantages of good adaptability, flexible operation, high efficiency, saving costs, etc.

Application Environment

Motor Power: AC 3 Phases, Rated frequency: 50Hz, Rated Voltage: 380V.
Altitude not more than 2,000m.
There shall be no flammable, explosive and corrosive gases at the working site.
This product is forbidden to hoist molten metal, toxic substances and flammable and explosive materials.

Application Scenario

Water Conservancy And Hydropower

The dam-top gantry crane is installed on the top of a hydropower station dam. It is mainly used for gate lifting and material handling.

Wind Power Industry

Weihua cranes are widely used in offshore wind power projects, especially for wind turbine installation and large component handling.

Shipyard Cranes

Shipyard gantry cranes are designed for shipbuilding operations, including section lifting, turning, assembly, and launching.

Steel Mill Cranes

Weihua metallurgical cranes are used in steel mills covering lifting needs from smelting to finished product handling.

Features

Brand Reputation

Weihua Cranes ranks among the top sellers in China's crane industry, boasting high brand awareness and market share. Its products are widely used in numerous national key projects.

Full Service

Weihua provides a one-stop service, encompassing consultation and planning, solution design, installation, and localized technical support worldwide.

Excellent Product Quality

Weihua Crane employs automated production lines and precision machining equipment. Key components are sourced from well-known domestic and international brands.

High Safety

Weihua Lifting strictly adheres to international standards such as GB and FEM. Key structures adopt high safety factors to ensure precise operation.

Customized

Customized Floor-Mounted Jib Crane Solutions

Weihua Crane provides fully customized Floor-Mounted Jib Crane solutions designed for localized material handling, offering flexible rotation, high efficiency, and independent operation in various workstations.

Key parameters such as lifting capacity, arm length, lifting height, and rotation angle can be flexibly customized to match different workspace layouts, improving efficiency and reducing manual handling efforts.

Optional Configurations

Electric chain hoist or wire rope hoist options
Manual or motorized rotation system
Remote control or pendant control system
360° rotation or customized rotation angle
Customized column height and base mounting design

Our engineering team ensures flexible operation, easy installation, and reliable performance, providing efficient lifting solutions for workshops, assembly lines, warehouses, and maintenance stations.
