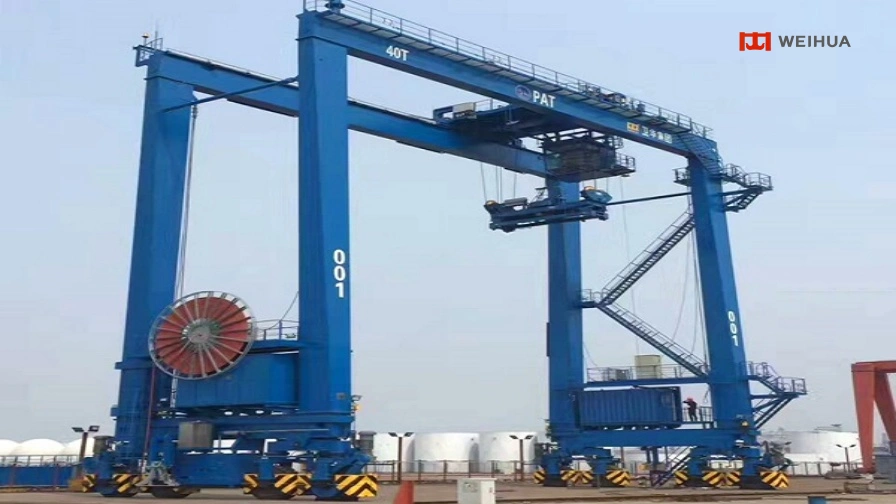

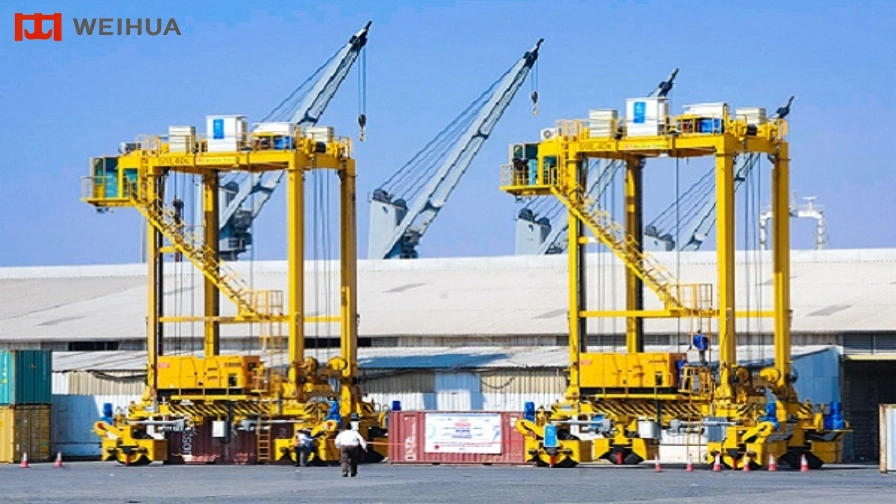

The Rubber Tyred Container Gantry Crane (RTG) is designed for handling containers and large components at loading/unloading areas and container yards. Equipped with multiple hooking-point spreaders, it adapts to various lifting scenarios. The crane can perform 360° steering for highly flexible movement.
Drive & Control
The crane uses a full hydraulic drive for both traveling and lifting mechanisms with stepless speed regulation. Long-travel movement utilizes a hydraulic closed circuit for high transmission efficiency and low fault rates. Safety indicators and overload limiters ensure the safety of operators and lifted goods. All operations are managed via CAN-BUS control for precise and reliable handling.
Features
Also known as RTG, it is widely used for stacking containers in container storage yards.
Equipped with specialized spreaders to lift standard 20GP, 40GP, 45HQ containers, and hydraulic storage tanks.
Trolley and crane traveling mechanisms feature a three-in-one reducer for convenient maintenance.

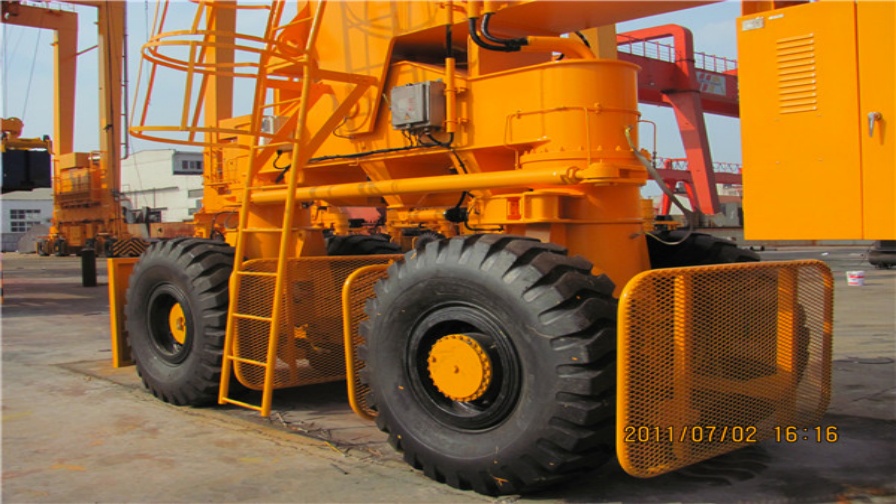

The tires can rotate 90° and move obliquely at 20° and 45°, offering high maneuverability.
Brand Reputation
Weihua Cranes ranks among the top sellers in China's crane industry, boasting high brand awareness and market share. Its products are widely used in numerous national key projects.
Full Service
Weihua provides a one-stop service, encompassing consultation and planning, solution design, installation, and localized technical support worldwide.
Excellent Product Quality
Weihua Crane employs automated production lines and precision machining equipment. Key components are sourced from well-known domestic and international brands.
High Safety
Weihua Lifting strictly adheres to international standards such as GB and FEM. Key structures adopt high safety factors to ensure precise operation.
Customized Rubber Tyred Container Gantry Crane Solutions
Weihua Crane provides fully customized Rubber Tyred Container Gantry Crane solutions for flexible container handling operations, delivering high efficiency, mobility, and reliability for container yards and ports.
Key parameters such as lifting capacity, span, lifting height, wheelbase, and stacking height can be adjusted according to project requirements, ensuring optimal performance in various container handling scenarios.
Optional Configurations
Electric or diesel drive system for mobility
Automated control and remote operation system
Anti-sway system for precise container handling
Energy-saving drive and regenerative braking system
Custom spreader design for different container sizes
Our engineering team ensures high operational efficiency, mobility, and long-term reliability, providing advanced solutions for modern container yards, ports, and heavy-duty lifting applications.
| Model | LJ35/40-23 | Light Type LJ40-32 |
| Lifting Capacity(under spreader)(t) | 35, 40 | 40 |
| Work Duty | A7, A8 | A6, A7 |
| Span(m) | 23, 47 | 23, 47 |
| Lifting Height (m) | 12.2-17.8 | 16.5 |
| Stack Layers/Passing Layers | 3/4-5/6 | 5/6 |
| Container Model | 20' ,40' , 45' | 20' ,40' , 45' |
| Spreader Rotating Angle | ±5° | ±5° |
| Hoisting Speed (m/min) | 13/26, 23/52 | 12/18, 18/28 |
| Cross Travel Speed(m/min) | 50, 70 | 24 |
| Long Travel Speed(m/min) | Full Load-90, Without Load-130 | Full Load-20 Without Load-40 |
| Max. Wheel Load(KN) | 310 | 310 |
| Total Rating(KW) | 150, 230 | 110, 150 |
| Power Supply | Electric, Diesel Engine, Electric-diesel Engine | |
-
