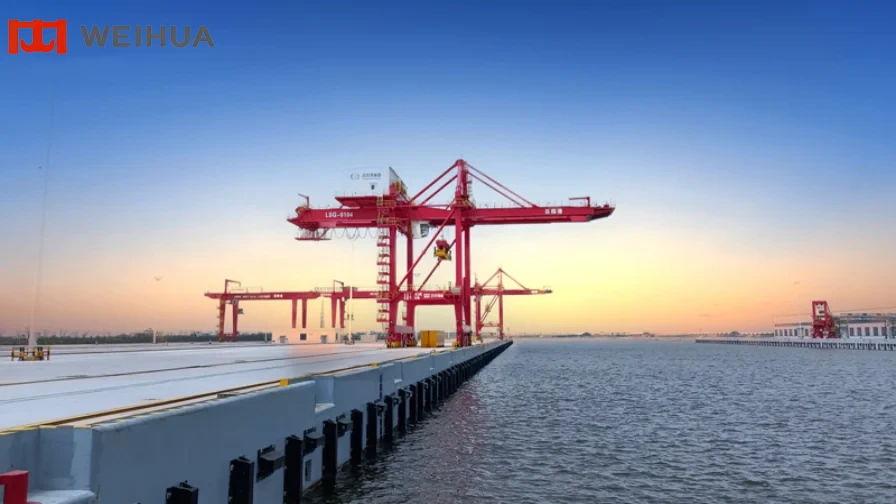

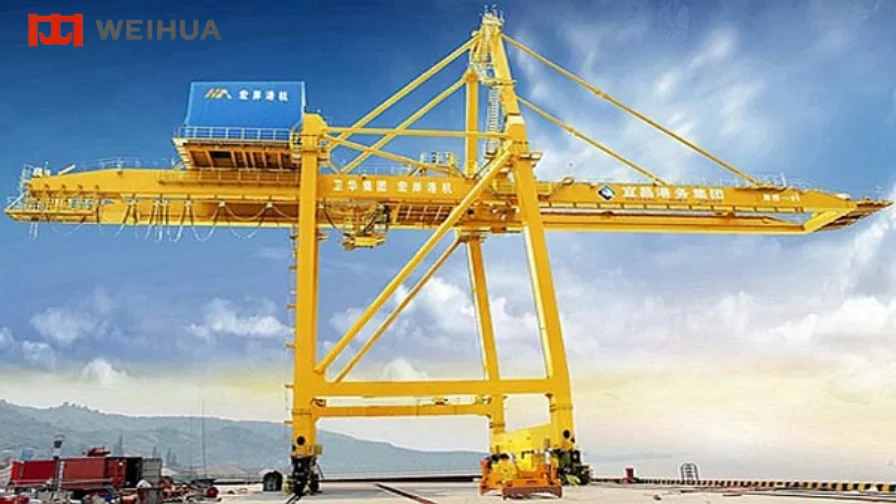

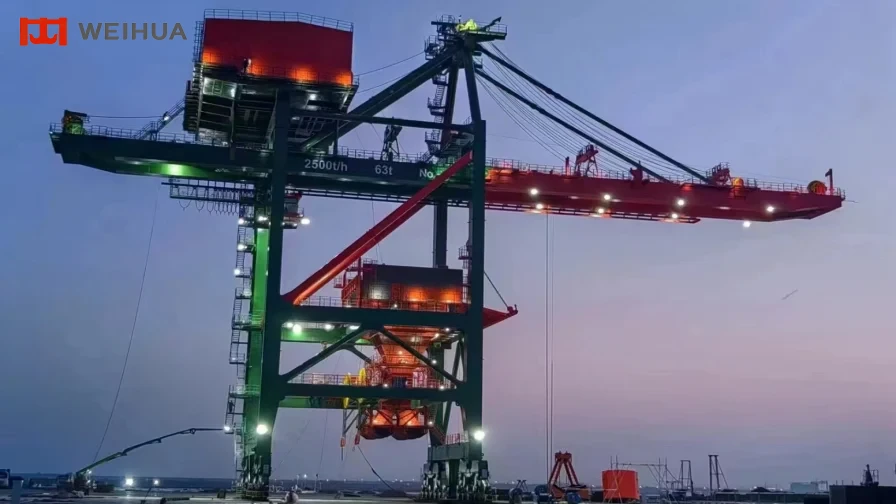

The Ship-to-Shore Gantry Crane is a high-performance port lifting equipment designed for efficient container handling between vessels and terminals. It supports lifting capacities of 38–60 tons under the spreader and is widely applied in modern container ports for high-efficiency loading and unloading operations.
The crane features a rigid gantry structure with long outreach, enabling it to serve large container ships with high precision. With working levels up to A7–A8 duty class, it is designed for continuous heavy-duty port operations.
Equipped with advanced hoisting and trolley systems, the crane delivers high-speed lifting up to 150 m/min and trolley travel up to 220 m/min, ensuring fast turnaround time and improved port efficiency. Its robust structure and optimized dimensions provide excellent stability and long service life under demanding conditions.
38 t – 60 t (above spreader)
10.5 m – 22 m
Above: 22–38 m / Below: 10–16 m
380V, 50Hz, 3 Phase AC
Application Areas
Container terminals and seaports
Large-scale logistics and shipping hubs
Port cargo handling and vessel loading operations
Automated and semi-automated port systems
Important Notes
Ensure proper rail selection (P50 / QU80 / QU100) based on load requirements
Regular inspection is required for high-speed hoisting and trolley systems
Suitable for port environments; anti-corrosion protection is recommended for coastal use
Brand Reputation
Weihua Cranes ranks among the top sellers in China's crane industry, boasting high brand awareness and market share. Its products are widely used in numerous national key projects.
Full Service
Weihua provides a one-stop service, encompassing consultation and planning, solution design, installation, and localized technical support worldwide.
Excellent Product Quality
Weihua Crane employs automated production lines and precision machining equipment. Key components are sourced from well-known domestic and international brands.
High Safety
Weihua Lifting strictly adheres to international standards such as GB and FEM. Key structures adopt high safety factors to ensure precise operation.
Customized Ship To Shore Crane Solutions
Weihua Crane provides fully customized Ship To Shore crane solutions according to port terminal requirements, ensuring optimal performance and efficiency for different operational scenarios.
Key parameters such as lifting capacity, outreach length, lifting height, and rail gauge can be flexibly adjusted to match various vessel sizes and terminal layouts, meeting diverse operational demands.
Optional Configurations
Automated control systems
Remote operation technology
Anti-sway system for precise positioning
Energy-saving drive systems
Intelligent terminal integration systems
Our experienced engineering team ensures high efficiency, operational safety, and long-term reliability, providing advanced solutions for modern port and terminal operations.
| Lifting Capacity( below spreader ) | t | 30.5 | 35 | 40.5 | 50 | ||
| Lifting Capacity( above spreader ) | t | 38 | 45 | 50 | 60 | ||
| Work Level | A7 | A7 | A8 | A8 | |||
| Span( m ) | S | 10.5 | 10.5 | 22 | 22 | ||
| Base Distance | B | 16.5 | 17.63 | 16 | 16 | ||
| Lifting Height( above/Below) | H1 | 22 | 22 | 28 | 38 | ||
| H2 | 16 | 10 | 14 | 14 | |||
| Speed | Lifting Speed | Full Load | m/min | 46 | 30 | 50 | 70 |
| Only With Spreader | 120 | 60 | 120 | 150 | |||
| Trolley Traveling | 150 | 120 | 120 | 220 | |||
| Crane Traveling | 45 | 25 | 45 | 45 | |||
| One Luffing Time Of Jib | min | 7 | 6 | 5 | 5 | ||

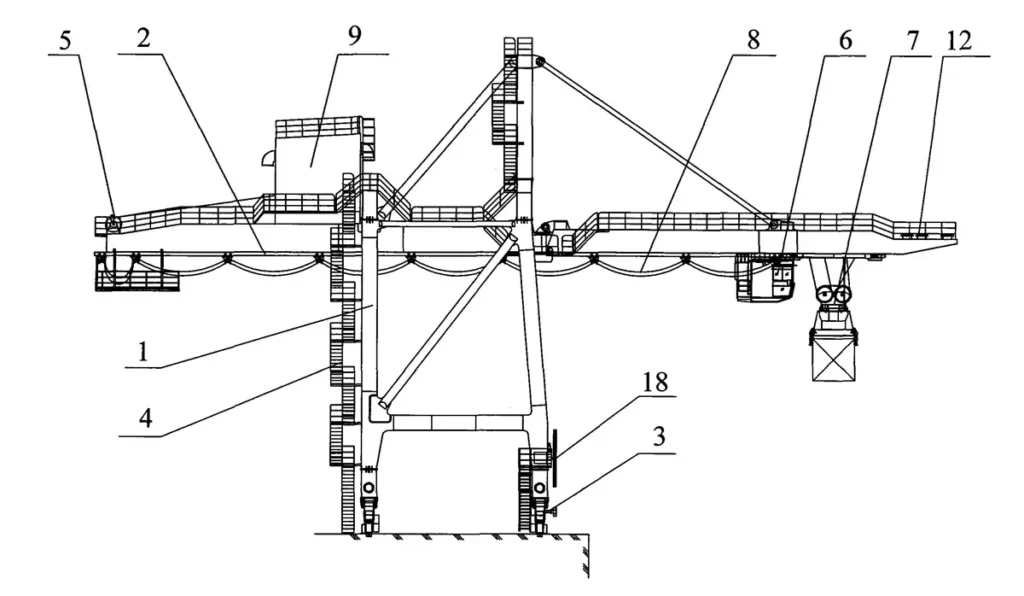

| Main Dimension | L1 | 38000 | 30000 | 38000 | 55000 | ||
| L2 | 10000 | 10000 | 11000 | 18000 | |||
| L3 | 4000 | 8850 | 6000 | 6300 | |||
| L4 | 4000 | 110000 | 15000 | 20000 | |||
| H3 | 14000 | 110000 | 12600 | 16500 | |||
| H4 | 75670 | 68100 | 8000 | 9500 | |||
| B0 | 25600 | 17630 | 25600 | 26500 | |||
| Total Power | KW | 650 | 500 | 920 | 1700 | ||
| Max Wheel Load | KN | 300 | 260 | 400 | 450 | ||
| Steel Track Recommended | P50 | P50 | QU80 | QU100 | |||
| Power | 380V, 50Hz，3Phase AC | ||||||
-
